Enjoliveurs ext. / Grille de décor for BMW 3 Series E30 325ix (1989)

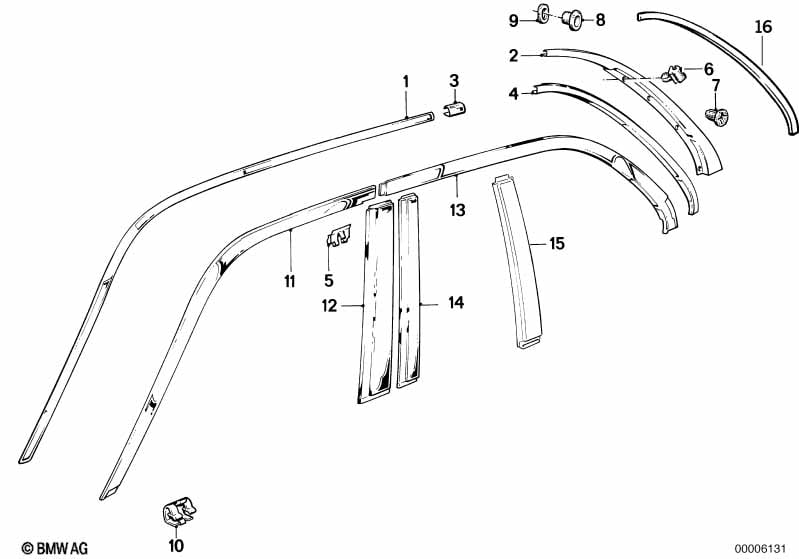

This Enjoliveurs ext. / Grille de décor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulure de gouttiere gauche | 1 | 51131947215 | $72.54 | Shop at ECS Tuning | |||||
| 01 | Moulure de gouttiere droite | 1 | 51131947216 | Shop at ECS Tuning | ||||||
| 02 | Cache de montant arrière gauche | 1 | 51131947993 | arrêté | Shop at ECS Tuning | |||||
| 02 | Cache de montant arrière droit | 1 | 51131947994 | arrêté | Shop at ECS Tuning | |||||
| 03 | Couvre-joint gauche | SCHWARZ | 1 | 51131953067 | $14.71 | Shop at ECS Tuning | ||||
| 03 | Couvre-joint droit | SCHWARZ | 1 | 51131953068 | $14.71 | Shop at ECS Tuning | ||||
| 04 | Liteau d.decor gauche | 1 | 51131947141 | Shop at ECS Tuning | ||||||
| 04 | Liteau d.decor droite | 1 | 51131947142 | arrêté | Shop at ECS Tuning | |||||
| 05 | Agrafe | X | 51321874017 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Agrafe | 8 | 51131884467 | $0.48 | +vieille matière | Shop at ECS Tuning | ||||
| 07 | Douille | 2 | 51141902279 | $0.62 | Shop at ECS Tuning | |||||
| 08 | Element | 10X7 | 6 | 51131870459 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Joint | 6 | 51131858962 | $0.13 | arrêté | Shop at ECS Tuning | ||||
| 09 | Joint | 6 | 51131904479 | $0.30 | Shop at ECS Tuning | |||||
| 10 | Agrafe | 8 | 51131863499 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Cache gauche | SCHWARZ | 1 | 51321961247 | $35.21 | Shop at ECS Tuning | ||||
| 11 | Cache droit | SCHWARZ | 1 | 51321961248 | $35.21 | Shop at ECS Tuning | ||||
| 12 | Cache gauche | 1 | 51321876143 | $20.36 | Shop at ECS Tuning | |||||
| 12 | Cache droit | 1 | 51321876144 | $20.36 | Shop at ECS Tuning | |||||
| 13 | Cache gauche | 1 | 51341947213 | $22.88 | arrêté | Shop at ECS Tuning | ||||
| 13 | Cache droit | 1 | 51341947214 | Shop at ECS Tuning | ||||||
| 14 | Cache gauche | 1 | 51341888219 | $24.95 | arrêté | Shop at ECS Tuning | ||||
| 14 | Cache droit | 1 | 51341888220 | $24.95 | Shop at ECS Tuning | |||||
| 15 | Cache gauche | 1 | 51341947211 | arrêté | Shop at ECS Tuning | |||||
| 15 | Cache droit | 1 | 51341947212 | Shop at ECS Tuning | ||||||
| 16 | Caoutch.d.remplissage | 1000MM | 1 | 51131906969 | $5.52 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
