Emblèmes / plaques for BMW 3 Series E30 325ix (1989)

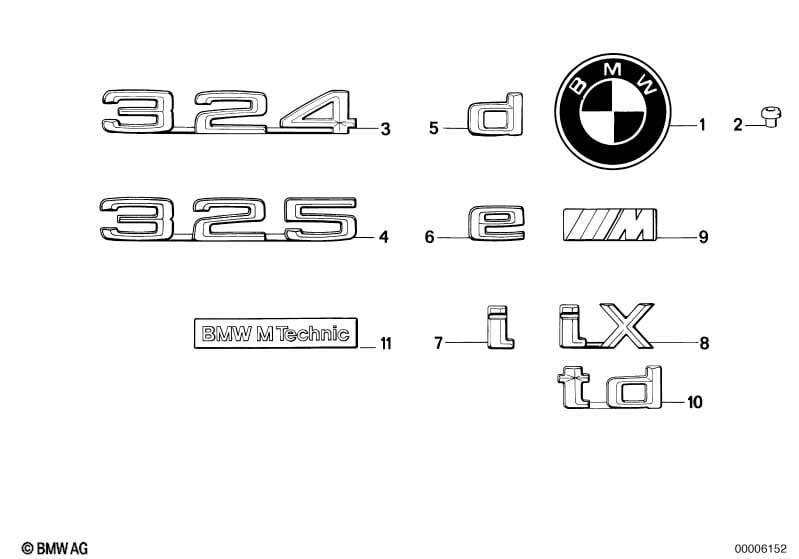

This Emblèmes / plaques technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plaquette de couvercle de coffre | 1 | 51141872969 | $30.43 | Shop at ECS Tuning | |||||
| 01 | Plaquette | Ø 82MM | 1 | 51148132375 | $32.02 | Shop at ECS Tuning | ||||
| Nécessaire pour la réparation | ||||||||||
| -- | Douille | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 02 | Douille | 4 | 51141852899 | $1.84 | Shop at ECS Tuning | |||||
| 04 | Embleme colle | "325" | 1 | 51141924867 | $32.20 | Shop at ECS Tuning | ||||
| 08 | Embleme colle arriere | "IX" | 1 | 51141945034 | $25.21 | Shop at ECS Tuning | ||||
| 09 | Monogramme ar "M" | 1 | 51141917739 | $37.00 | Shop at ECS Tuning | |||||
| 09 | Monogramme av "M" | 1 | 72601933569 | $35.32 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Emblèmes / plaques?
- This technical diagram illustrates the Emblèmes / plaques within the Equipement véhicule group for the 3 Series E30 325ix produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Plaquette de couvercle de coffre (Part #51141872969).
- Which models use the hardware listed in this Emblèmes / plaques?
- The hardware and components featured in the Emblèmes / plaques are specific to the 3 Series E30 325ix produced during 1989. These technical specifications ensure that parts like the Plaquette de couvercle de coffre (51141872969) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblèmes / plaques assembly?
- Each item in the Emblèmes / plaques corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Plaquette de couvercle de coffre by locating its position on the schematic, which then links to the official BMW part number 51141872969 for the Equipement véhicule section.
