Caches et revetements lateraux for BMW 3 Series E30 325ix (1989)

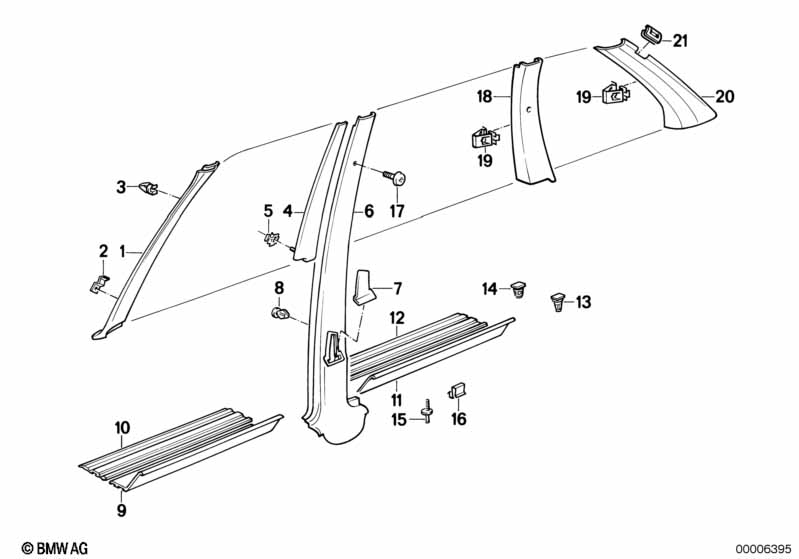

This Caches et revetements lateraux technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cache de montant gauche | 1 | 51431884375 | $21.81 | Shop at ECS Tuning | |||||
| 01 | Cache de montant droit | 1 | 51431884376 | $21.81 | Shop at ECS Tuning | |||||
| 02 | Support | 2 | 51431922789 | $1.21 | Shop at ECS Tuning | |||||
| 03 | Agrafe | 2 | 51431881429 | $0.85 | Shop at ECS Tuning | |||||
| 04 | Revêtement de cadre de vitre gauche | 1 | 51411906475 | $16.57 | Shop at ECS Tuning | |||||
| 04 | Revêtement de cadre de vitre droit | 1 | 51411906476 | $15.89 | Shop at ECS Tuning | |||||
| 05 | Agrafe | X | 51411906485 | $0.42 | arrêté | Shop at ECS Tuning | ||||
| 06 | Revetement de colonne centrale gauche | SCHWARZ | 1 | 51431933731 | $73.83 | arrêté | Shop at ECS Tuning | |||
| 06 | Revetement de colonne centrale droite | SCHWARZ | 1 | 51431933732 | $73.83 | arrêté | Shop at ECS Tuning | |||
| 07 | Couvercle gauche | 1 | 51431916681 | $1.96 | Shop at ECS Tuning | |||||
| 07 | Couvercle droit | 1 | 51431916682 | $1.96 | Shop at ECS Tuning | |||||
| 08 | Bouchon | 4 | 51441854624 | $0.39 | Shop at ECS Tuning | |||||
| 09 | Enjoliveur de seuil avant | 2 | 51471904595 | $12.14 | Shop at ECS Tuning | |||||
| 10 | Cache avant | 2 | 51471904641 | $12.14 | Shop at ECS Tuning | |||||
| 10 | Cache avant | M TECHNIC | 2 | 51472230812 | $66.70 | arrêté | Shop at ECS Tuning | |||
| 11 | Enjoliveur de seuil gauche | 1 | 51471933557 | $19.41 | Shop at ECS Tuning | |||||
| 11 | Bordure de seuil droite | 1 | 51471933558 | $19.41 | Shop at ECS Tuning | |||||
| 12 | Cache arriere droit | 1 | 51471904645 | $12.14 | Shop at ECS Tuning | |||||
| 12 | Cache arriere droit | 1 | 51471904646 | $12.14 | arrêté | Shop at ECS Tuning | ||||
| 12 | Cache arriere droit | M TECHNIC | 1 | 51472230813 | $89.56 | arrêté | Shop at ECS Tuning | |||
| 12 | Cache arriere droit | M TECHNIC | 1 | 51472230814 | $89.56 | arrêté | Shop at ECS Tuning | |||
| 13 | Agrafe | X | 51471840961 | $0.42 | Shop at ECS Tuning | |||||
| 14 | Clip Natur | L=13,2MM | X | 51471840960 | $0.24 | Shop at ECS Tuning | ||||
| 15 | Rivet | 2 | 51471919209 | $0.45 | Shop at ECS Tuning | |||||
| 16 | Agrafe | 2 | 51471933985 | $6.34 | Shop at ECS Tuning | |||||
| NE CONVENANT QU'AVEC CEINTURE DE SECURITE AVANT |
||||||||||
| 17 | Vis bouchon | 7/16"X18;SCHW. | 2 | 51711913007 | $0.68 | Shop at ECS Tuning | ||||
| 18 | Cache de montant arrière gauche | 1 | 51431947145 | Shop at ECS Tuning | ||||||
| 18 | Cache de montant arrière droit | 1 | 51431947146 | Shop at ECS Tuning | ||||||
| 19 | Agrafe | X | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 20 | Cache de montant arrière gauche | SCHWARZ | 1 | 51431947401 | arrêté | Shop at ECS Tuning | ||||
| 20 | Cache de montant arrière droit | SCHWARZ | 1 | 51431947402 | arrêté | Shop at ECS Tuning | ||||
| 20 | Cache de montant arrière gauche | SILBER | 1 | 51431947403 | $55.40 | arrêté | Shop at ECS Tuning | |||
| 20 | Cache de montant arrière droit | SILBER | 1 | 51431947404 | Shop at ECS Tuning | |||||
| 20 | Cache de montant arrière gauche | NATUR | 1 | 51431947409 | arrêté | Shop at ECS Tuning | ||||
| 20 | Cache de montant arrière droit | NATUR | 1 | 51431947410 | arrêté | Shop at ECS Tuning | ||||
| 21 | Coupelle | 2 | 51431947458 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
