Garniture de pavillon profile / poignee for BMW 3 Series E30 325ix (1989)

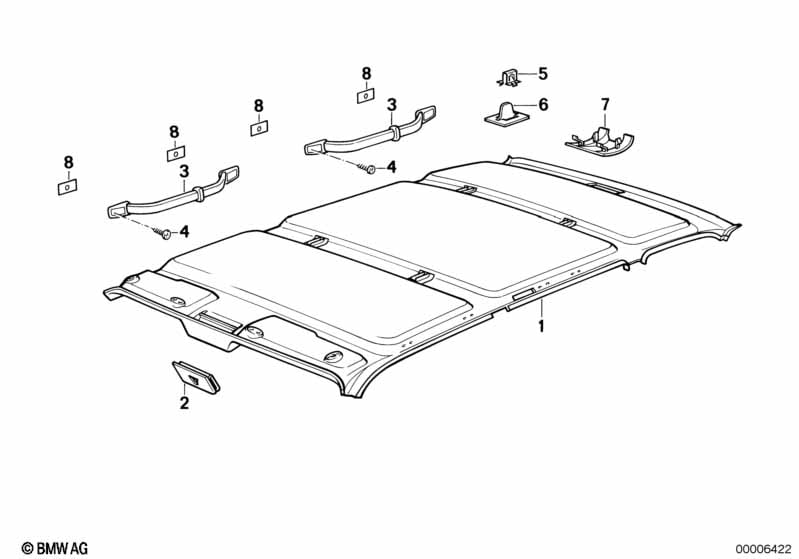

This Garniture de pavillon profile / poignee technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ciel pavillon moulé | QUARZ | 1 | 51441947260 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Toit ouvrant à lever, électrique |
=Oui |
|||||||||
| 01 | Ciel pavillon moulé | QUARZ | 1 | 51441947262 | $388.37 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Ouvr.incl.man. |
=Oui |
|||||||||
| 01 | Ciel pavillon moulé | QUARZ | 1 | 51441947261 | $388.37 | arrêté | Shop at ECS Tuning | |||
| 02 | Recouvrement | 1 | 51441900133 | $3.61 | Shop at ECS Tuning | |||||
| Pour véhicules avec Toit ouvrant à lever, électrique |
=Oui |
|||||||||
| 02 | Cache | 1 | 51441979820 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Série speciale M-Design et Toit ouvrant à lever, électrique |
=Oui =Oui |
|||||||||
| 02 | Cache | SCHWARZ | 1 | 51442261769 | arrêté | Shop at ECS Tuning | ||||
| 03 | Poignée de maintien | 3 | 51161888099 | $21.28 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis a tole tête bombee | ST4,8X16 Z2 | X | 07119907789 | $0.13 | arrêté | Shop at ECS Tuning | |||
| 05 | Agrafe | X | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 06 | Support | X | 51441957623 | $0.65 | Shop at ECS Tuning | |||||
| 07 | Cache gauche | QUARZ | 1 | 51441947365 | $8.82 | arrêté | Shop at ECS Tuning | |||
| 07 | Cache droit | QUARZ | 1 | 51441947366 | $8.82 | arrêté | Shop at ECS Tuning | |||
| 07 | Cache gauche | SCHWARZ | 1 | 51442259293 | arrêté | Shop at ECS Tuning | ||||
| 07 | Cache droit | SCHWARZ | 1 | 51442259294 | arrêté | Shop at ECS Tuning | ||||
| 08 | Appui | 4 | 51161979989 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
