Revetement de couverture de coffre for BMW 3 Series E30 325ix (1989)

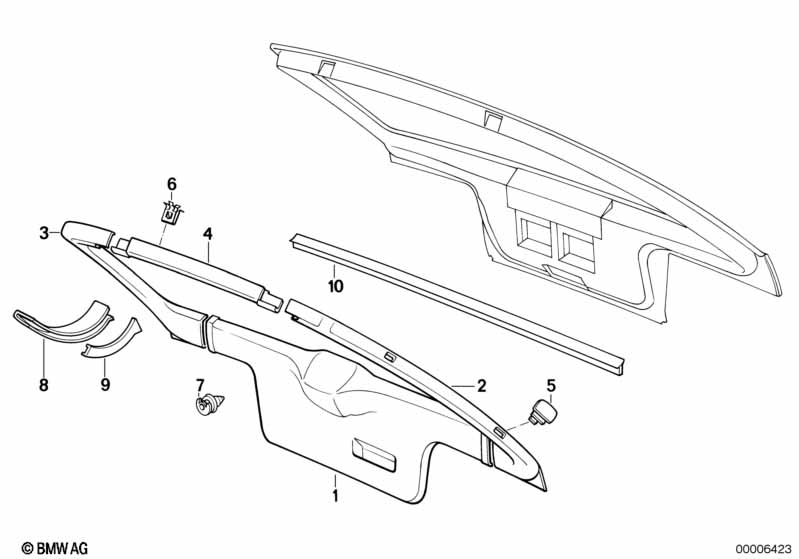

This Revetement de couverture de coffre technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cache partie inférieure | SCHWARZ | 1 | 51491947469 | arrêté | Shop at ECS Tuning | ||||
| 01 | Cache partie inférieure | SILBER | 1 | 51491947470 | Shop at ECS Tuning | |||||
| 01 | Cache partie inférieure | NATUR | 1 | 51491947884 | arrêté | Shop at ECS Tuning | ||||
| 02 | Cache gauche | SCHWARZ | 1 | 51491947461 | Shop at ECS Tuning | |||||
| 02 | Cache gauche | SILBER | 1 | 51491947463 | Shop at ECS Tuning | |||||
| 02 | Cache gauche | NATUR | 1 | 51491947885 | arrêté | Shop at ECS Tuning | ||||
| 03 | Cache droit | SCHWARZ | 1 | 51491947462 | Shop at ECS Tuning | |||||
| 03 | Cache droit | SILBER | 1 | 51491947464 | arrêté | Shop at ECS Tuning | ||||
| 03 | Cache droit | NATUR | 1 | 51491947886 | Shop at ECS Tuning | |||||
| 04 | Cache supérieur | SCHWARZ | 1 | 51491947473 | Shop at ECS Tuning | |||||
| 04 | Cache supérieur | SILBER | 1 | 51491947474 | Shop at ECS Tuning | |||||
| 04 | Cache supérieur | NATUR | 1 | 51491947887 | arrêté | Shop at ECS Tuning | ||||
| 05 | Rivet | ANTHRAZIT | 4 | 51491979045 | Shop at ECS Tuning | |||||
| 05 | Rivet | NATUR | 4 | 51491979047 | arrêté | Shop at ECS Tuning | ||||
| 05 | Rivet | SILBER | 4 | 51491979048 | Shop at ECS Tuning | |||||
| 06 | Douille | 12X6,3 | 2 | 51131840154 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Agrafe | 2 | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 07 | Clip noir | 7 | 51498123832 | $0.29 | Shop at ECS Tuning | |||||
| 08 | Cache gauche | SCHWARZ | 1 | 51491947931 | $17.15 | Shop at ECS Tuning | ||||
| 08 | Cache droit | SCHWARZ | 1 | 51491947932 | $17.15 | Shop at ECS Tuning | ||||
| 08 | Cache gauche | SILBER | 1 | 51491947933 | Shop at ECS Tuning | |||||
| 08 | Cache droit | SILBER | 1 | 51491947934 | Shop at ECS Tuning | |||||
| 08 | Cache gauche | NATUR | 1 | 51491947939 | Shop at ECS Tuning | |||||
| 08 | Cache droit | NATUR | 1 | 51491947940 | Shop at ECS Tuning | |||||
| 09 | Chape gauche | SCHWARZ | 1 | 51491947941 | $8.86 | Shop at ECS Tuning | ||||
| 09 | Cache droit | SCHWARZ | 1 | 51491947942 | $8.86 | Shop at ECS Tuning | ||||
| 09 | Chape gauche | SILBER | 1 | 51491947943 | arrêté | Shop at ECS Tuning | ||||
| 09 | Cache droit | SILBER | 1 | 51491947944 | Shop at ECS Tuning | |||||
| 09 | Chape gauche | NATUR | 1 | 51491947949 | Shop at ECS Tuning | |||||
| 09 | Cache droit | NATUR | 1 | 51491947950 | arrêté | Shop at ECS Tuning | ||||
| 10 | Joint | 994MM | 1 | 51498100666 | $14.13 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
