Insonorisation compart.mot./conduit air for BMW 3 Series E30 325ix (1989)

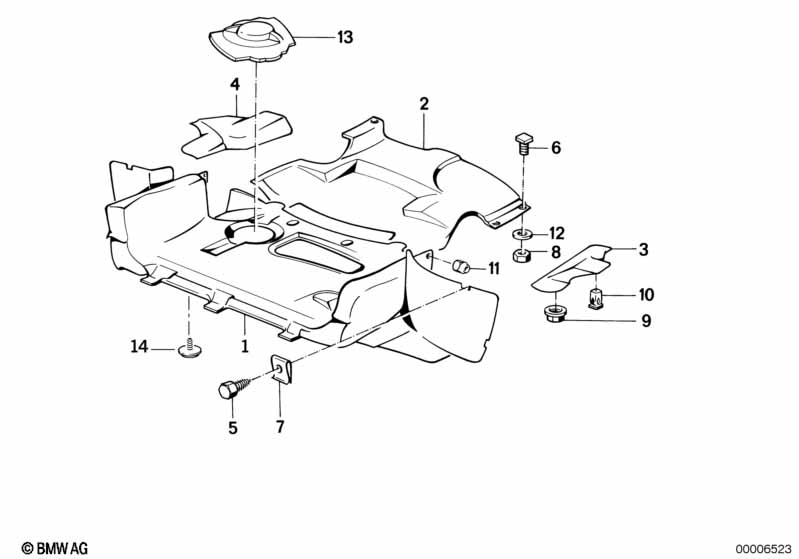

This Insonorisation compart.mot./conduit air technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection de compartiment moteur | 1 | 51711965609 | $89.89 | Shop at ECS Tuning | |||||
| 05 | Vis à tôle à six pans | ST6,3X19-C-Z2 | 8 | 07119916967 | $0.29 | Shop at ECS Tuning | ||||
| 05 | Vis à tôle à six pans | ST6,3X25-C-Z2 | 2 | 07119916973 | $0.58 | arrêté | Shop at ECS Tuning | |||
| 06 | Vis à tête carrée | M8X18 | 2 | 23711130250 | $4.27 | Shop at ECS Tuning | ||||
| 07 | Ecrou tôlé | ST 4,8-6-ZNS3 | 3 | 07129904225 | $0.16 | Shop at ECS Tuning | ||||
| 08 | Ecrou à six pans | M8-8-ZNS3 | 2 | 04/1993 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 08 | Ecrou à six pans | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 09 | Ecrou six pans avec plaque | M6 | 4 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 10 | Ecrou extensible | ST 6.3 | 2 | 64121379221 | $0.60 | Shop at ECS Tuning | ||||
| 11 | Ecrou plast. axe à filetage à pas gros | M6 | 6 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 12 | Plaque d'appui | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Recouvrement de filtre à huile | 1 | 51711936928 | $7.41 | Shop at ECS Tuning | |||||
| 14 | Capôt de protection | X | 51718100880 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
