Protection d'organes avant for BMW 3 Series E30 325ix (1989)

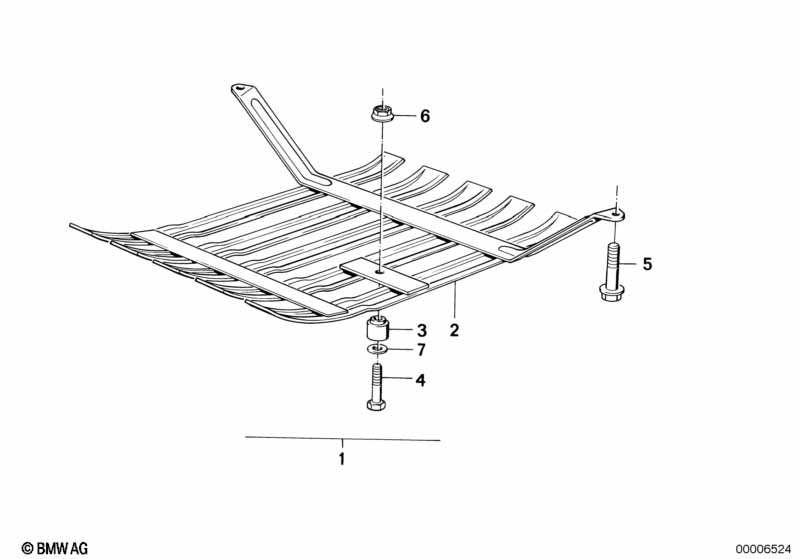

This Protection d'organes avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Necessaire de protection organes avant | 1 | 51719058586 | arrêté | Shop at ECS Tuning | |||||
| 02 | Protection d'organes avant | 1 | 51711943101 | $278.79 | arrêté | Shop at ECS Tuning | ||||
| 03 | Douille | 2 | 51711943104 | $6.06 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M10X20 | 2 | 33331132413 | $1.11 | Shop at ECS Tuning | ||||
| 05 | Vis six pans | M8X45-8.8-ZNS3 | 2 | 07119902955 | $0.62 | Shop at ECS Tuning | ||||
| 06 | Ecrou à six pans autobloquant | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Ecrou six pans avec plaque | M8 | 2 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 07 | Plaque d'appui | 8,4X16X1,6-ZNNV | 2 | 07119907030 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325ix Protection d'organes avant?
- This technical diagram illustrates the Protection d'organes avant within the Equipement véhicule group for the 3 Series E30 325ix produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Necessaire de protection organes avant (Part #51719058586).
- Which models use the hardware listed in this Protection d'organes avant?
- The hardware and components featured in the Protection d'organes avant are specific to the 3 Series E30 325ix produced during 1989. These technical specifications ensure that parts like the Necessaire de protection organes avant (51719058586) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Protection d'organes avant assembly?
- Each item in the Protection d'organes avant corresponds to the numbered list below the illustration. For the 3 Series E30 325ix, you can identify the Necessaire de protection organes avant by locating its position on the schematic, which then links to the official BMW part number 51719058586 for the Equipement véhicule section.
