Mécanisme de fenêtre de porte arrière for BMW 7 Series E38 740i (1998)

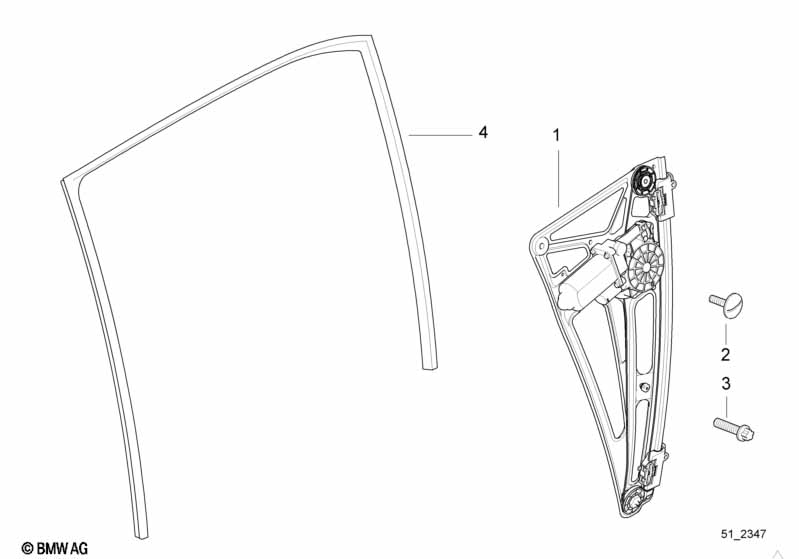

This Mécanisme de fenêtre de porte arrière technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lève-glace électrique arrière gauche | 1 | 51358125203 | $364.46 | Shop at ECS Tuning | |||||
| 01 | Lève-glace électrique arrière droit | 1 | 51358125204 | $364.46 | Shop at ECS Tuning | |||||
| Pour véhicules avec Vitrage de protection |
S357A=Oui |
|||||||||
| 01 | Lève-glace électrique arrière gauche | 1 | 51358229205 | $364.46 | Shop at ECS Tuning | |||||
| 01 | Lève-glace électrique arrière droit | 1 | 51358229206 | $364.46 | Shop at ECS Tuning | |||||
| 02 | Vis Torx | M6X30 | 4 | 51357203714 | $2.56 | Shop at ECS Tuning | ||||
| 03 | Vis Torx | M6X20 | 2 | 07147203315 | $0.44 | Shop at ECS Tuning | ||||
| 04 | Guide de vitre arriere gauche | 1 | 51328125761 | $141.77 | Shop at ECS Tuning | |||||
| 04 | Guide de vitre arriere droite | 1 | 51328125762 | $141.77 | Shop at ECS Tuning | |||||
| Pour véhicules avec Double vitrage isolant |
S352A=Oui |
|||||||||
| 04 | Guide de vitre arriere gauche | 1 | 51348150403 | $169.24 | Shop at ECS Tuning | |||||
| 04 | Guide de vitre arriere droite | 1 | 51348150404 | $169.24 | Shop at ECS Tuning | |||||
