Garniture avant for BMW 7 Series E38 740i (2001)

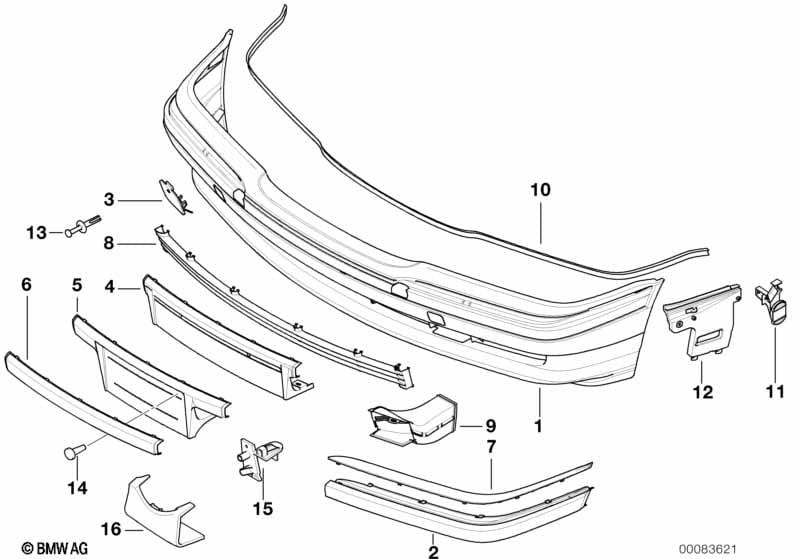

This Garniture avant technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Habillage de pare-chocs apprêté avant | 1 | 51118125303 | $542.57 | Shop at ECS Tuning | |||||
| 01 | Revetem. de pare-chocs av peint compl. | CODE - UNI/MET. | 1 | 03/1999 | 51110000367 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| Indiquer code couleur à la commande | ||||||||||
| Pour véhicules avec Régulateur de vitesse actif |
S541A=Oui |
|||||||||
| 01 | Habillage de pare-chocs apprêté avant | 1 | 03/2000 | 51118237077 | $542.57 | Shop at ECS Tuning | ||||
| 01 | Revetem. de pare-chocs av peint compl. | CODE - UNI/MET. | 1 | 03/2000 | 51110000369 | $11.72 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| Indiquer code couleur à la commande | ||||||||||
| 02 | Moulure de protection avant gauche | 1 | 51118125309 | $51.82 | Shop at ECS Tuning | |||||
| 02 | Moulure de protection avant droite | 1 | 51118125310 | $51.82 | Shop at ECS Tuning | |||||
| Pour véhicules avec Syst. d'aide au Stationnement |
=Oui |
|||||||||
| 02 | Moulure de protection avant gauche | 1 | 51118170555 | $51.82 | Shop at ECS Tuning | |||||
| 02 | Moulure de protection avant droite | 1 | 51118170556 | $51.82 | Shop at ECS Tuning | |||||
| 03 | Couvercle anneau de remorquage en appret | 1 | 51118169536 | $11.39 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Attache de fixation | 1 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||
| 05 | Appui | 1 | 51118150488 | $66.45 | Shop at ECS Tuning | |||||
| 06 | Lame de pare-chocs | 1 | 51118150492 | $43.63 | Shop at ECS Tuning | |||||
| 07 | Cache gauche | CHROM | 1 | 51118125437 | $45.22 | Shop at ECS Tuning | ||||
| 07 | Cache droit | CHROM | 1 | 51118125438 | $45.22 | Shop at ECS Tuning | ||||
| Pour véhicules avec Lave-projecteurs |
=Oui |
|||||||||
| 07 | Cache gauche | CHROM | 1 | 51118168105 | $45.22 | Shop at ECS Tuning | ||||
| 07 | Cache droit | CHROM | 1 | 51118168106 | $45.22 | Shop at ECS Tuning | ||||
| Pour véhicules avec Shadow-Line |
=Oui |
|||||||||
| 07 | Cache en appret gauche | 1 | 51118211577 | $40.10 | Shop at ECS Tuning | |||||
| 07 | Cache en appret droit | 1 | 51118211578 | $40.10 | Shop at ECS Tuning | |||||
| Pour véhicules avec Shadow-Line et Lave-projecteurs |
=Oui =Oui |
|||||||||
| 07 | Cache en appret gauche | 1 | 51118211579 | $40.10 | arrêté | Shop at ECS Tuning | ||||
| 07 | Cache en appret droit | 1 | 51118211580 | $40.10 | arrêté | Shop at ECS Tuning | ||||
| 08 | Grille | 1 | 51118125325 | $74.82 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Régulateur de vitesse actif |
S541A=Oui |
|||||||||
| 08 | Grille gauche | ACC | 1 | 51118237082 | $74.82 | Shop at ECS Tuning | ||||
| 08 | Grille droite | ACC | 1 | 51118237084 | $112.23 | Shop at ECS Tuning | ||||
| 09 | Conduite d'air de freinage avant gauche | 1 | 51118150763 | $9.96 | Shop at ECS Tuning | |||||
| 09 | Conduite d'air de freinage avant droite | 1 | 51118150764 | $9.96 | Shop at ECS Tuning | |||||
| 10 | Joint | 1 | 51118164813 | Shop at ECS Tuning | ||||||
| 11 | Support de fixation gauche | 1 | 09/1998 | 51118230513 | $6.02 | Shop at ECS Tuning | ||||
| 11 | Support de fixation droit | 1 | 09/1998 | 51118230514 | $6.02 | Shop at ECS Tuning | ||||
| 12 | Insert gauche | 1 | 51118125307 | $13.87 | Shop at ECS Tuning | |||||
| 12 | Insert droit | 1 | 51118125308 | $13.87 | Shop at ECS Tuning | |||||
| 13 | Rivet | 6 | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 14 | Clavette | 2 | 51118118634 | $0.66 | Shop at ECS Tuning | |||||
| 15 | Support gauche | 1 | 63178352815 | $8.47 | Shop at ECS Tuning | |||||
| 15 | Appui droit | 1 | 63178352816 | $8.47 | Shop at ECS Tuning | |||||
| Pour véhicules avec Régulateur de vitesse actif |
S541A=Oui |
|||||||||
| 16 | Recouvrement ACC | SW SEIDENMATT | 1 | 09/2000 | 51118237079 | $26.61 | arrêté | Shop at ECS Tuning | ||
| 16 | Recouvrement ACC peint | CODE - UNI/MET. | 1 | 09/2000 | 51110027451 | arrêté | Shop at ECS Tuning | |||
| Indiquer code couleur à la commande | ||||||||||
| Pour véhicules avec Pare-chocs de couleur de carrosserie et Régulateur de vitesse actif |
S341A=Oui S541A=Oui |
|||||||||
| 16 | Recouvrement ACC | SW SEIDENMATT | 1 | 09/2000 | 51118237079 | $26.61 | arrêté | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
