Pare-chocs arriere for BMW 1502-2002tii 2002 (1970)

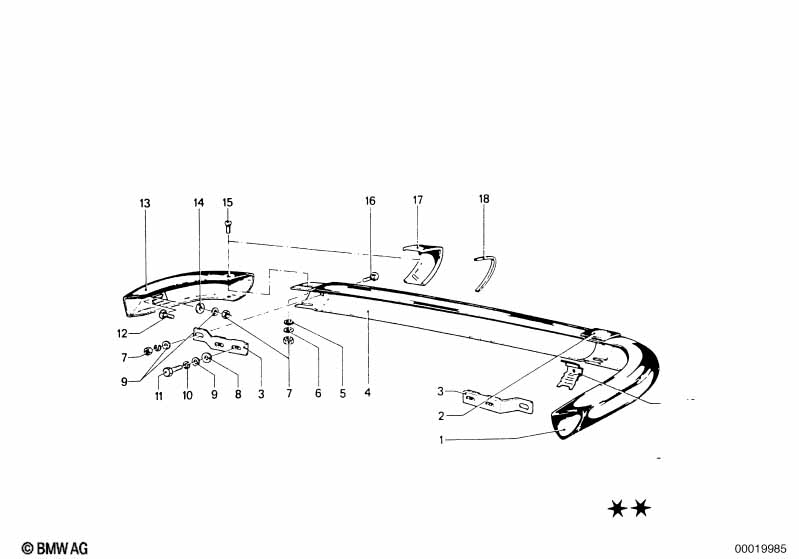

This Pare-chocs arriere technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|

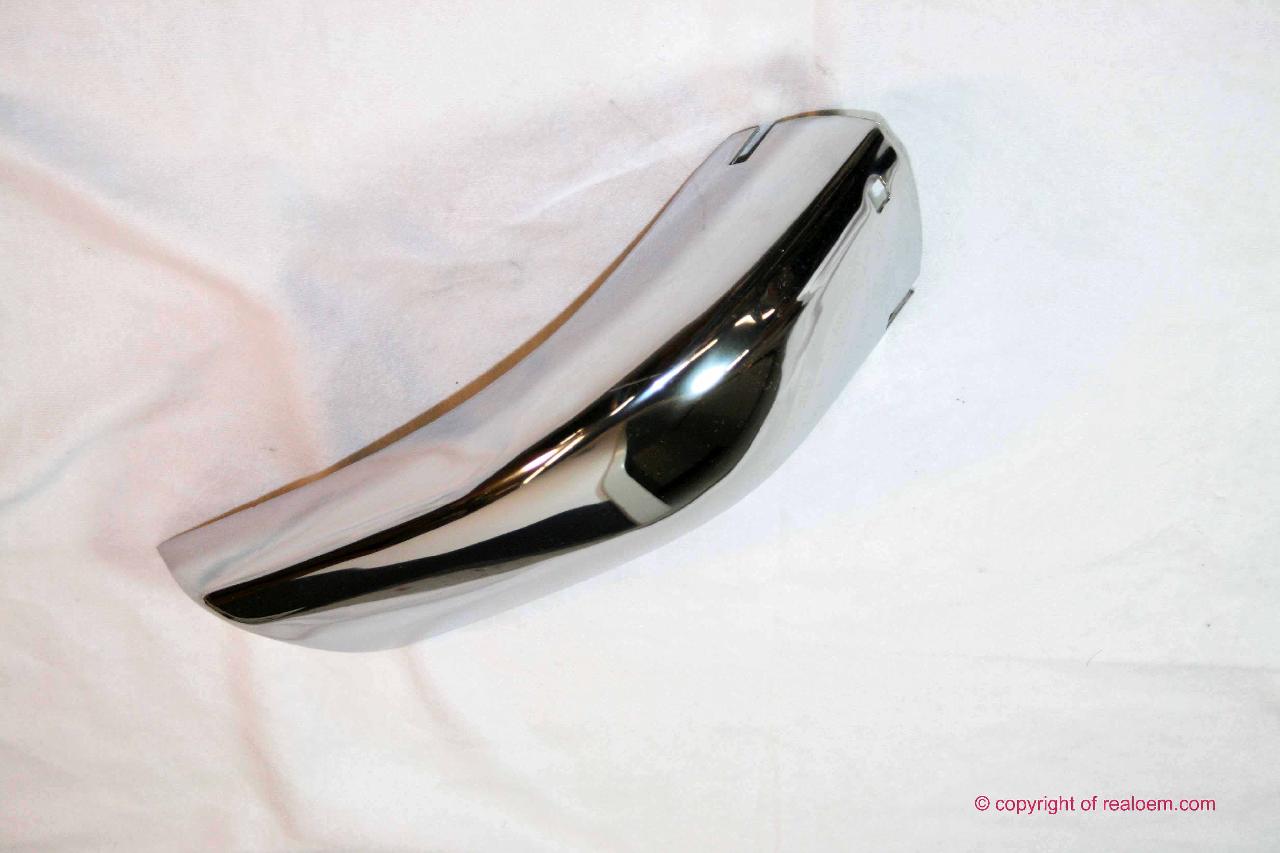

| 01 | Pare-chocs arriere gauche | 1 | 03/1966 | 07/1977 | 51125470052 | $282.08 | Shop at ECS Tuning | |||
| 02 | Recouvrement | HINTEN LINKS | 1 | 03/1966 | 07/1977 | 51121803273 | $113.73 | Shop at ECS Tuning | ||
| 03 | Etrier de ressort | 2 | 03/1966 | 07/1977 | 51125470060 | $17.16 | Shop at ECS Tuning | |||
| 04 | Pare-chocs arriere central | 1 | 09/1967 | 07/1977 | 51121801250 | $437.47 | arrêté | Shop at ECS Tuning | ||
| 05 | Plaque d'appui | 8,4X16X1,6-ZNNV | 4 | 03/1966 | 07/1977 | 07119907030 | Shop at ECS Tuning | |||
| 06 | Rondelle grower | B8 | 4 | 03/1966 | 07/1977 | 07119933096 | $0.18 | Shop at ECS Tuning | ||
| 07 | Ecrou six pans avec plaque | M8 | 6 | 03/1966 | 07/1977 | 51117070183 | $0.77 | Shop at ECS Tuning | ||
| 08 | Rondelle joint | 4 | 03/1966 | 07/1977 | 51125670140 | $0.50 | Shop at ECS Tuning | |||
| 09 | Plaque d'appui | 8,4X18X2MM | 8 | 03/1966 | 07/1977 | 07149180923 | Shop at ECS Tuning | |||
| 10 | Rondelle grower | B8 | 6 | 03/1966 | 07/1977 | 07119933096 | $0.18 | Shop at ECS Tuning | ||
| 11 | Vis six pans | M8X25-8.8-ZNNIV | 4 | 03/1966 | 07/1977 | 07119906181 | $0.55 | Shop at ECS Tuning | ||
| 12 | Vis à tête bombée | M8X20 | 4 | 03/1966 | 07/1977 | 07119910437 | $0.52 | Shop at ECS Tuning | ||
| 13 | Pare-chocs arriere droit | 1 | 03/1966 | 07/1977 | 51125470053 | $282.08 | Shop at ECS Tuning | |||
| 14 | Rondelle caoutchouc | 2 | 03/1966 | 07/1977 | 51125071765 | $1.21 | arrêté | Shop at ECS Tuning | ||
| 15 | Vis à tête carrée | M8X16 | 4 | 03/1966 | 07/1977 | 51121804528 | $0.57 | Shop at ECS Tuning | ||
| 16 | Vis à tête bombée | M8X40 | 2 | 03/1966 | 07/1977 | 07119910463 | $0.92 | Shop at ECS Tuning | ||
| 17 | Recouvrement | HINTEN RECHTS | 1 | 51121806026 | $124.99 | arrêté | Shop at ECS Tuning | |||

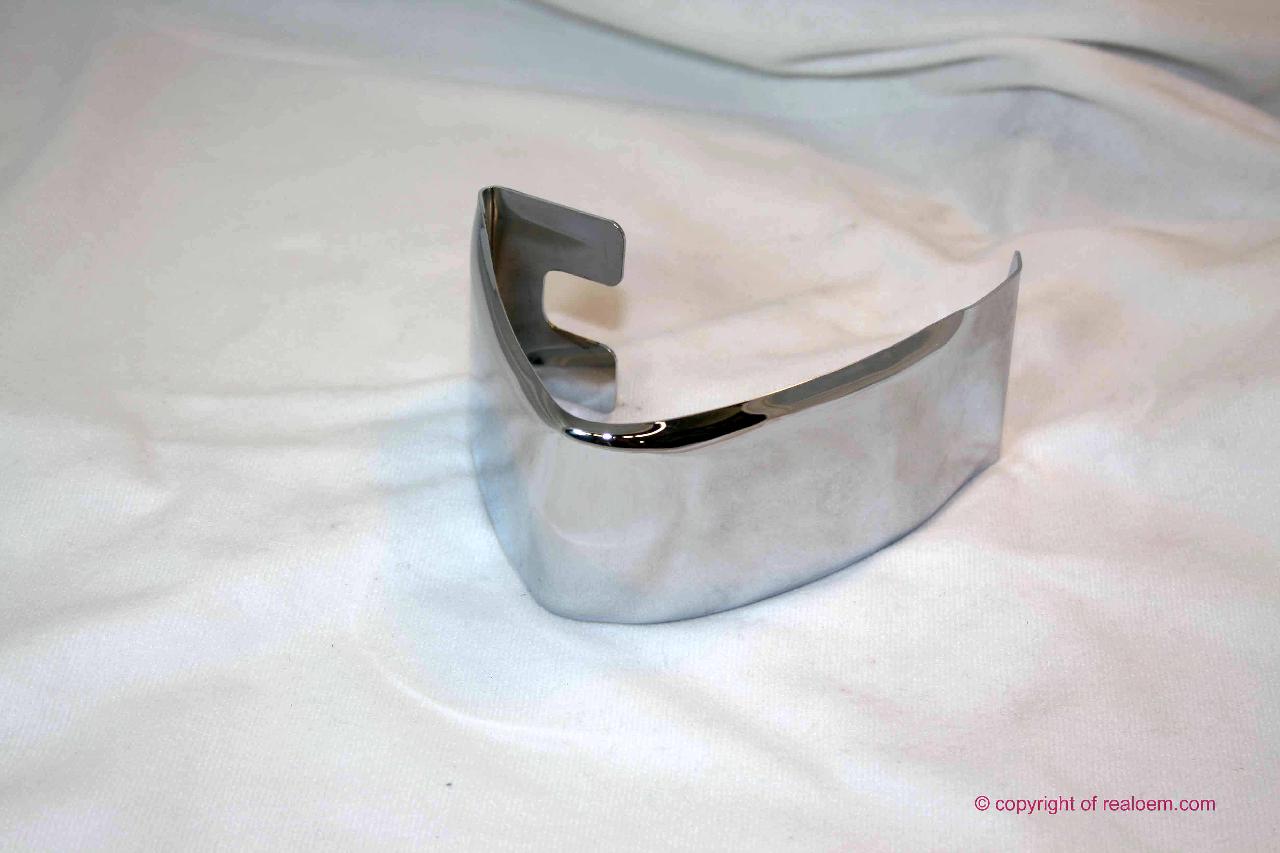

| 17 | Recouvrement | HINTEN RECHTS | 1 | 03/1966 | 07/1977 | 51121803274 | $113.73 | Shop at ECS Tuning | ||
| 18 | Bande de caoutchouc | SILBER | 4 | 03/1966 | 07/1977 | 51111816063 | $5.60 | Shop at ECS Tuning | ||
| 19 | Appui | 2 | 03/1966 | 07/1977 | 51125470065 | $25.27 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
