Pare-chocs arriere for BMW 1500-2000CS 1800 (1971)

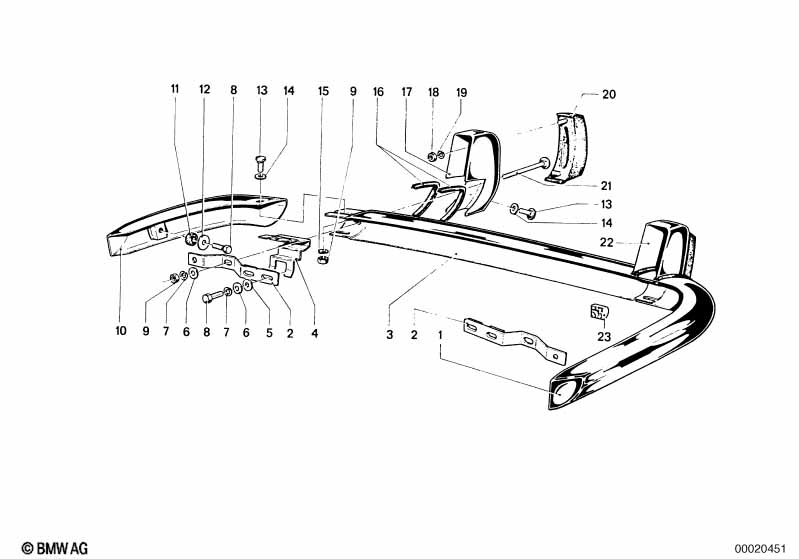

This Pare-chocs arriere technical drawing provides a detailed breakdown of the assembly for the 1500-2000CS 1800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Pare-chocs arriere gauche | 1 | 51125670053 | arrêté | Shop at ECS Tuning | |||||
| 02 | Etrier de ressort | 2 | 51125670160 | arrêté | Shop at ECS Tuning | |||||
| 03 | Pare-chocs | 1 | 51125670051 | $386.14 | arrêté | Shop at ECS Tuning | ||||
| 04 | Douille | 1 | 51125670158 | arrêté | Shop at ECS Tuning | |||||
| 04 | Douille | 1 | 51125670159 | arrêté | Shop at ECS Tuning | |||||
| 06 | Plaque d'appui | 8,4X16X1,6-ZNNV | 8 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Rondelle grower | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Ecrou à six pans | M8-8-ZNS3 | 6 | 01/1972 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 09 | Ecrou à six pans | M8-8-ZNNIV SI | 6 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Pare-chocs arriere droit | 1 | 51125670054 | $251.10 | arrêté | Shop at ECS Tuning | ||||
| 11 | Rondelle caoutchouc | 2 | 51125071765 | $1.21 | arrêté | Shop at ECS Tuning | ||||
| 12 | Plaque d'appui | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Vis | 4 | 51111804582 | $6.03 | arrêté | Shop at ECS Tuning | ||||
| 14 | Plaque d'appui | 10-200 HV-ZNNIV | 4 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 15 | Rondelle elastique | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Bande de caoutchouc | SILBER | X | 51111816063 | $5.60 | Shop at ECS Tuning | ||||
| 17 | Butoir de pare-chocs | RECHTS | 1 | 51125670153 | arrêté | Shop at ECS Tuning | ||||
| 18 | Ecrou à six pans | M6-8-ZNNIV SI | 4 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 19 | Plaque d'appui | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 20 | Butoir caoutchouc | 2 | 51119558125 | $30.34 | Shop at ECS Tuning | |||||
| 21 | Vis à tête bombée | M8X85 | 2 | 07119910478 | $2.13 | Shop at ECS Tuning | ||||
| 22 | Butoir de pare-chocs | LINKS | 1 | 51125670152 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
