Emblèmes / plaques for BMW 2.5CS-3.0CSL 3.0CSiL (1975)

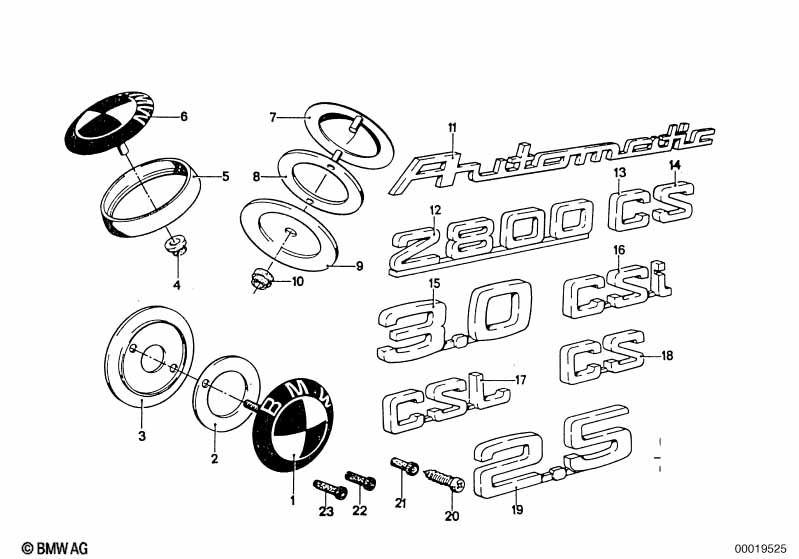

This Emblèmes / plaques technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Plaquette | 2 | 51141828851 | $66.29 | Shop at ECS Tuning | |||||
| 02 | Appui | 2 | 51146040110 | $1.76 | Shop at ECS Tuning | |||||
| 03 | Appui | 2 | 51145580146 | $13.73 | Shop at ECS Tuning | |||||
| 04 | Douille | 2 | 51141807495 | $0.68 | Shop at ECS Tuning | |||||
| 06 | Emblème BMW | 1 | 51145081747 | $28.44 | Shop at ECS Tuning | |||||
| 20 | Vis de tole a tete fraisee et bombee | ST3,9X13 | 10 | 07119902459 | $1.55 | Shop at ECS Tuning | ||||
| 21 | Douille | 4 | 51145780174 | arrêté | Shop at ECS Tuning | |||||
| 23 | Douille | 3 | 51141803459 | $1.34 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
