Vitre latérale fixe for BMW 2.5CS-3.0CSL 3.0CSiL (1975)

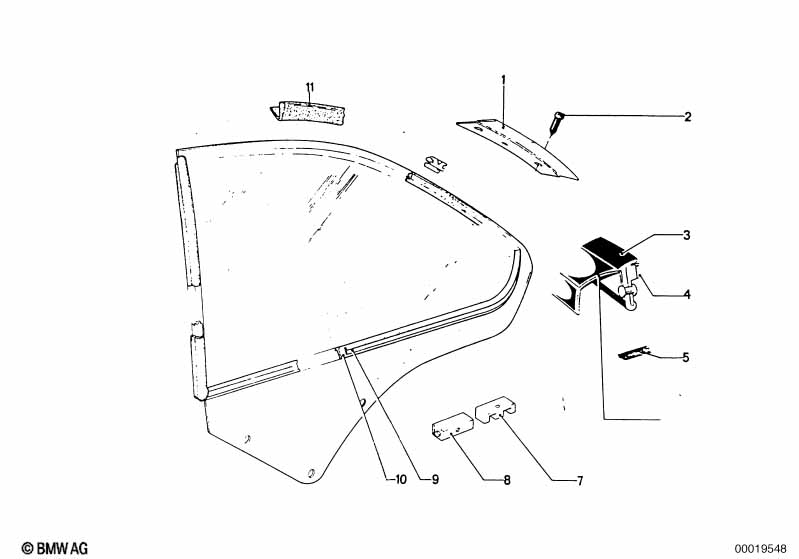

This Vitre latérale fixe technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSiL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Moulure superieure gauche | 1 | 51367740125 | arrêté | Shop at ECS Tuning | |||||
| 01 | Moulure superieure droite | 1 | 51367740126 | arrêté | Shop at ECS Tuning | |||||
| 02 | Vis a tole tête bombee | ST2,9X13 | 8 | 07119906706 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 08 | Support | 2 | 51376740140 | $10.69 | arrêté | Shop at ECS Tuning | ||||
| 09 | Joint gauche | 1 | 51367740135 | $146.20 | arrêté | Shop at ECS Tuning | ||||
| 09 | Joint droit | 1 | 51367740136 | $146.20 | arrêté | Shop at ECS Tuning | ||||
| 10 | Moulure enjoliveuse | 1 | 51367740132 | arrêté | Shop at ECS Tuning | |||||
| 10 | Moulure droite | 1 | 51367740133 | arrêté | Shop at ECS Tuning | |||||
| 11 | Joint | 2 | 51376740175 | $48.88 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
