Mécanisme de fenêtre de porte arrière for BMW 7 Series E67 760LiS

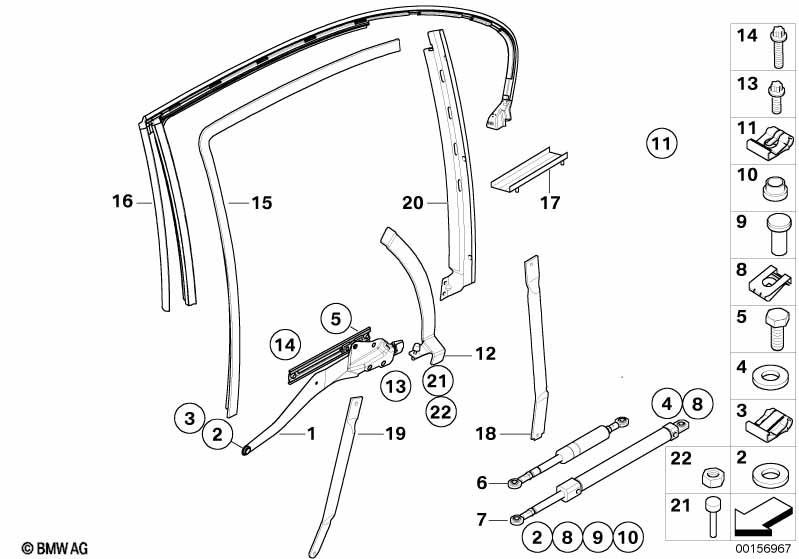

This Mécanisme de fenêtre de porte arrière technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 760LiS. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mécanisme de lève-vitre arrière gauche | 1 | 51357055385 | Shop at ECS Tuning | ||||||
| 01 | Mécanisme de lève-vitre arrière droite | 1 | 51357055386 | Shop at ECS Tuning | ||||||
| 02 | Plaque d'appui | 10-200 HV-ZNNIV | 1 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 03 | Fusible | B10-ZNS3 | 2 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Plaque d'appui | 8,4X16X1,6-ZNNV | 8 | 07119907030 | Shop at ECS Tuning | |||||
| 05 | Vis six pans | M8X12 | 4 | 07119902914 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Ressort à gaz lève-vitre | 2 | 51338195386 | $168.52 | Shop at ECS Tuning | |||||
| 07 | Vérin hydraulique lève-vitres arrière | 2 | 67826924228 | +vieille matière | Shop at ECS Tuning | |||||
| 08 | Disque de securite | B8 | 4 | 07129904492 | Shop at ECS Tuning | |||||
| 09 | Boulon | 4 | 41517065272 | Shop at ECS Tuning | ||||||
| 10 | Douille | 1 | 41517065273 | Shop at ECS Tuning | ||||||
| 11 | Disque de securite | B8 | 4 | 07129904492 | Shop at ECS Tuning | |||||
| 13 | Vis Torx | M6X20 | 2 | 07147203315 | $0.44 | Shop at ECS Tuning | ||||
| 14 | Vis Torx | M6X30 | 2 | 51357203714 | $2.56 | Shop at ECS Tuning | ||||
| 15 | Guide-vitre porte AR int. gauche | 1 | 51357055381 | Shop at ECS Tuning | ||||||
| 15 | Guide-vitre porte AR int. droit | 1 | 51357055382 | Shop at ECS Tuning | ||||||
| 16 | Guide-vitre porte AR ext. gauche | 1 | 51357055393 | Shop at ECS Tuning | ||||||
| 16 | Guide-vitre porte AR ext. droit | 1 | 51357055394 | Shop at ECS Tuning | ||||||
| 17 | Logement vitre latérale AR G | 1 | 51357075053 | Shop at ECS Tuning | ||||||
| 17 | Logement vitre latérale AR D | 1 | 51357075054 | Shop at ECS Tuning | ||||||
| 18 | Soutien de vitre latérale avant gauche | 1 | 51357055387 | +vieille matière | Shop at ECS Tuning | |||||
| 18 | Soutien de vitre latérale avant droite | 1 | 51357055388 | +vieille matière | Shop at ECS Tuning | |||||
| 19 | Soutien de vitre latérale avant gauche | 1 | 51337066125 | +vieille matière | Shop at ECS Tuning | |||||
| 19 | Soutien de vitre latérale avant droite | 1 | 51337066126 | Shop at ECS Tuning | ||||||
| 20 | Rail-guide p fenêtre arr gauche | 1 | 51355382465 | Shop at ECS Tuning | ||||||
| 20 | Rail-guide p fenêtre arr droit | 1 | 51355382466 | Shop at ECS Tuning | ||||||
| 21 | Butée élastique | M6 | 2 | 51241961697 | $2.76 | Shop at ECS Tuning | ||||
| 22 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
