Cache bas de caisse / passage roue for BMW 6 Series E63 630i (2007)

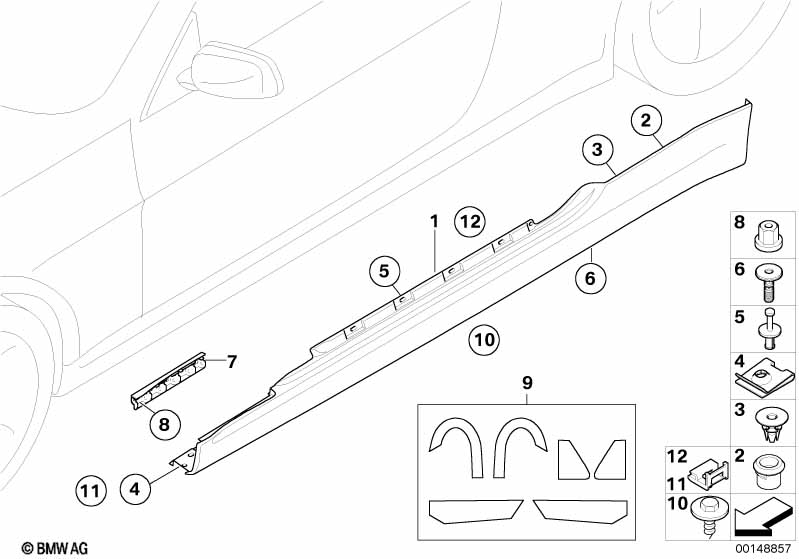

This Cache bas de caisse / passage roue technical drawing provides a detailed breakdown of the assembly for the 6 Series E63 630i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cache de bas de marches gauche en apprêt | 1 | 09/2007 | 51777074419 | $234.10 | Shop at ECS Tuning | ||||
| 01 | Cache de bas de marches droit en apprêt | 1 | 09/2007 | 51777074420 | $234.10 | Shop at ECS Tuning | ||||
| Indiquer code couleur à la commande | ||||||||||
| 01 | Cache de bas de marches gauche peint | CODE - UNI/MET. | 1 | 09/2007 | 51770304947 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 01 | Cache de bas de marches droit peint | CODE - UNI/MET. | 1 | 09/2007 | 51770304948 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| 02 | Passe-fils vert | D=9,1MM | 8 | 09/2007 | 51711932996 | $0.23 | Shop at ECS Tuning | |||
| 03 | Clip entretoise | X | 09/2007 | 51717066226 | $0.61 | Shop at ECS Tuning | ||||
| 04 | Ecrou tôlé | ST4,8-9-ZNS3 | 6 | 09/2007 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 05 | Rivet | D = 6MM | X | 09/2007 | 51111908077 | $0.30 | Shop at ECS Tuning | |||
| 06 | Cheville de sécurité | X | 09/2007 | 51717066229 | $0.35 | Shop at ECS Tuning | ||||
| 07 | Liteau de support gauche | 1 | 09/2007 | 51777072875 | $12.12 | Shop at ECS Tuning | ||||
| 07 | Liteau de support droite | 1 | 09/2007 | 51777072876 | $12.12 | Shop at ECS Tuning | ||||
| 08 | Ecrou à six pans | 6 | 09/2007 | 07129906887 | $0.56 | Shop at ECS Tuning | ||||
| 09 | Jeu de feuille | 1 | 09/2007 | 51777144864 | $19.26 | Shop at ECS Tuning | ||||
| 10 | Vis a tole a six pans avec rondelle | ST4,8X16MM | 6 | 09/2007 | 07147129160 | $0.36 | Shop at ECS Tuning | |||
| 11 | Clip | 6 | 09/2007 | 51717066220 | $1.11 | Shop at ECS Tuning | ||||
| 12 | Clip | BLAU | 2 | 09/2007 | 51777170955 | $1.44 | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
