Rétroviseur extérieur M for BMW 3 Series E93 M3 (2010)

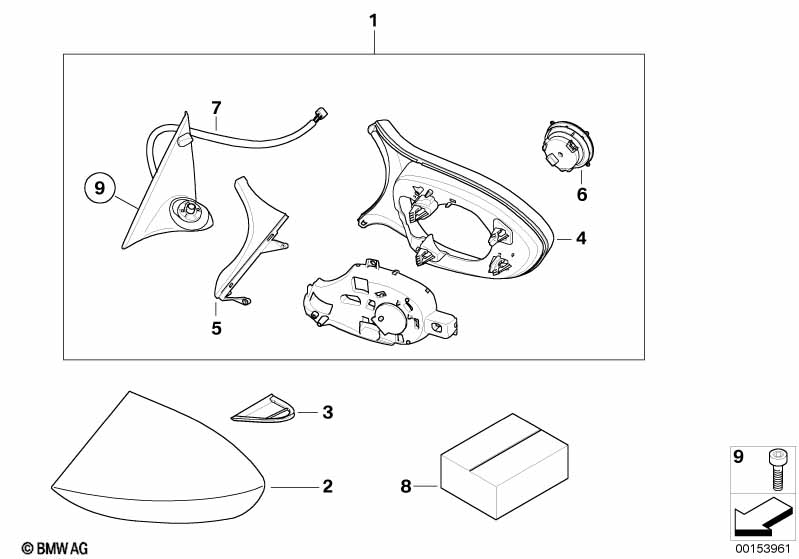

This Rétroviseur extérieur M technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.

Rétroviseur extérieur M
Descriptions Supplément Qté  A partir de   Jusqu'à  Référence pièce Prix Note
Version de base
01 Rétroviseur ext. chauffant à mémoire G MATTSCHWARZ 1 03/2010 51168053709 Shop at ECS Tuning
01 Rétroviseur ext. chauffant à mémoire D MATTSCHWARZ 1 03/2010 51168053710 Shop at ECS Tuning
Pour véhicules avec
Rétroviseur extérieur rabattable

S313A=Oui
01 Rétroviseur ext. chauffant à mémoire G MATTSCHWARZ 1 03/2010 51168053713 Shop at ECS Tuning
01 Rétroviseur ext. chauffant à mémoire D MATTSCHWARZ 1 03/2010 51168053714 Shop at ECS Tuning
Pour véhicules avec
Poli brillant Shadow line

S760A=Oui
01 Rétroviseur ext. chauffant à mémoire G GLANZSCHWARZ 1 03/2010 51168053717 Shop at ECS Tuning
01 Rétroviseur ext. chauffant à mémoire D GLANZSCHWARZ 1 03/2010 51168053718 Shop at ECS Tuning
Pour véhicules avec
Rétroviseur extérieur rabattable
et
Poli brillant Shadow line

S313A=Oui

S760A=Oui
01 Rétroviseur ext. chauffant à mémoire G GLANZSCHWARZ 1 03/2010 51168053721 Shop at ECS Tuning
01 Rétroviseur ext. chauffant à mémoire D GLANZSCHWARZ 1 03/2010 51168053722 Shop at ECS Tuning
02 Cache gauche en apprêt 1 03/2010 51168043225 $76.04 Shop at ECS Tuning
02 Cache droit en apprêt 1 03/2010 51168043226 $76.04 Shop at ECS Tuning
Indiquer code couleur à la commande
02 Cache droit peint CODE - UNI/MET. 1 03/2010 51160036120 arrêté Shop at ECS Tuning
02 Cache gauche peint CODE - UNI/MET. 1 03/2010 51160036121 arrêté Shop at ECS Tuning
03 Couvercles pour pied de rétroviseur 1 03/2010 51168044799 Shop at ECS Tuning
04 Anneau de fixation noir gauche 1 03/2010 51168045023 Shop at ECS Tuning
04 Anneau de fixation noir droit 1 03/2010 51168045024 Shop at ECS Tuning
Pour véhicules avec
Poli brillant Shadow line

S760A=Oui
04 Anneau de fixation noir brillant gauche GLANZSCHWARZ 1 03/2010 51168045027 Shop at ECS Tuning
04 Anneau de fixation noir brillant droit GLANZSCHWARZ 1 03/2010 51168045028 Shop at ECS Tuning
05 Cache gauche 1 03/2010 51168045015 Shop at ECS Tuning
05 Cache droit 1 03/2010 51168045016 Shop at ECS Tuning
Pour véhicules avec
Poli brillant Shadow line

S760A=Oui
05 Cache gauche GLANZSCHWARZ 1 03/2010 51168045019 Shop at ECS Tuning
05 Cache droit GLANZSCHWARZ 1 03/2010 51168045020 Shop at ECS Tuning
06 Actionneur rétroviseur extérieur bus LIN 2 03/2010 67137191398 $163.22 Shop at ECS Tuning
Version de base
Ne convient pas aux véhicules
avec
Rétroviseur rabattable
07 Faisceau retro. ext. electr. conducteur 1 03/2010 67136972542 Shop at ECS Tuning
07 Faisceau pour retro ext g electrique 1 03/2010 67136972543 Shop at ECS Tuning
08 Jeu d'éléments de fixation 1 03/2010 51168044793 $17.39 Shop at ECS Tuning
09 Vis Torx avec rondelle ISA M6X17 6 03/2010 07146961019 $0.47 Shop at ECS Tuning
Note
  • arrêté = la pièce n'est plus produite.
