Cache bas de caisse / passage roue for BMW MINI Clubman R55 Cooper (2006)

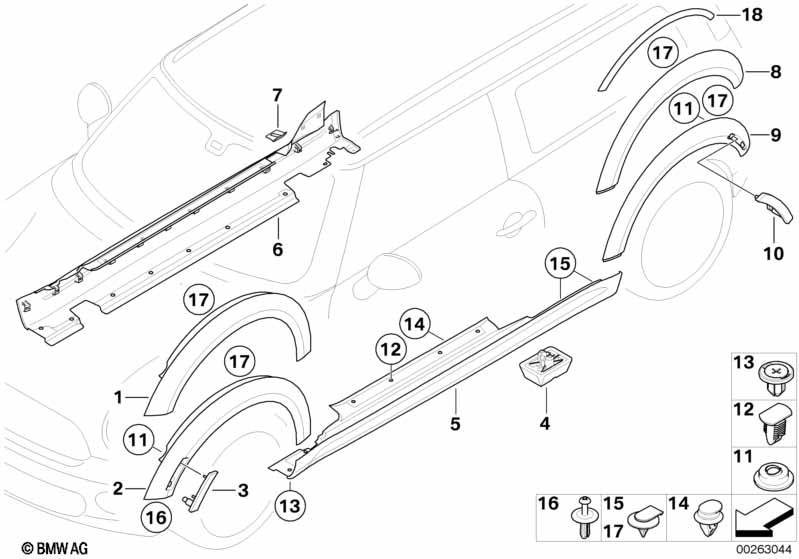

This Cache bas de caisse / passage roue technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Elargissement panneau latéral avant ga. | 1 | 08/2012 | 51772757209 | Shop at ECS Tuning | |||||
| 01 | Elargissement panneau latéral avant ga. | 1 | 51777349421 | Shop at ECS Tuning | ||||||
| 01 | Elargissement panneau latéral avant dr. | 1 | 51777349422 | Shop at ECS Tuning | ||||||
| 04 | Support de fixation de pont élévateur | 4 | 51717039760 | $14.75 | Shop at ECS Tuning | |||||
| 05 | Cache de bas de marches gauche | 1 | 51777167591 | $111.06 | Shop at ECS Tuning | |||||
| 06 | Cache de bas de marches droit | 1 | 51777167592 | $111.06 | Shop at ECS Tuning | |||||
| 07 | Cache d'étrier de fermeture inférieur | 1 | 51222755506 | $17.33 | Shop at ECS Tuning | |||||
| 08 | Elargissement panneau latéral ar. ga | 1 | 51777167593 | Shop at ECS Tuning | ||||||
| 08 | Elargissement panneau latéral ar. dr | 1 | 51777167594 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Version Japon |
L807A=Oui |
|||||||||
| 08 | Elargissement à l'arrière gauche | 1 | 51777319571 | arrêté | Shop at ECS Tuning | |||||
| 08 | Elargissement à l'arrière droit | 1 | 51777319572 | arrêté | Shop at ECS Tuning | |||||
| 12 | Clip | 8 | 51711496621 | $0.35 | Shop at ECS Tuning | |||||
| 13 | Rivet | 8 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 14 | Clip | SCHWARZ / BLACK | 18 | 07131480419 | $0.75 | Shop at ECS Tuning | ||||
| 15 | Clip | 4 | 07137073915 | $0.75 | Shop at ECS Tuning | |||||
| 16 | Rivet | 2 | 51472754477 | $1.12 | Shop at ECS Tuning | |||||
| 17 | Clip | X | 07132757821 | $0.75 | Shop at ECS Tuning | |||||
| Pour véhicules avec Version Japon |
L807A=Oui |
|||||||||
| 18 | Cache de passage de roue arrière | SPAT EXTENSION | 2 | 51777334640 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
