Habillage M avant for BMW 3 Series E93 M3 (2010)

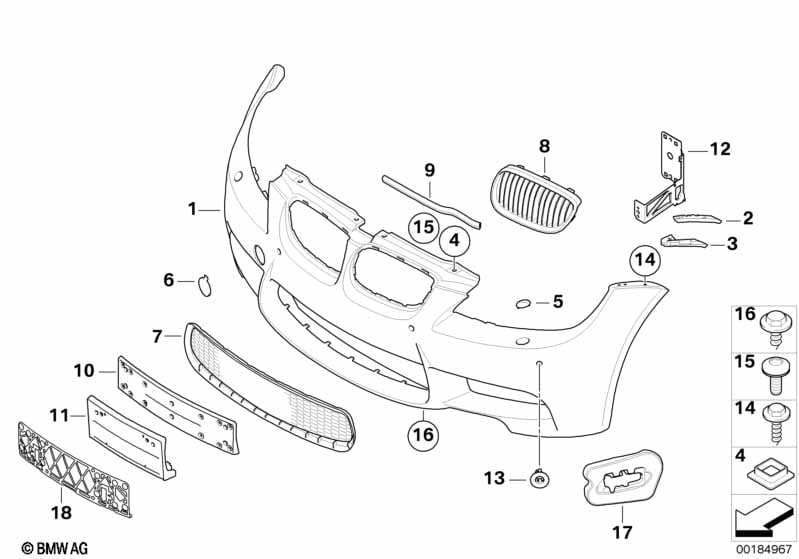

This Habillage M avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Système d'aide au stationnement (PDC) |
S508A=Oui |
|||||||||
| 01 | Habillage de pare-chocs apprêté avant | M - PDC | 1 | 51118041147 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu pièces montage pare-chocs avant | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| Pour véhicules avec Lave-projecteurs Attention ! Respecter l'information produits. Util iser les pièces « uniquement en combinaison avec ». |
S502A=Oui |
|||||||||
| 01 | Habillage de pare-chocs apprêté avant | M - PDC/SRA | 1 | 51118043959 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Anneau de découplage de capteur PDC | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Jeu de caches | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Jeu pièces montage pare-chocs avant | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| -- | Etiquette adhésive | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| Pour véhicules avec Lave-projecteurs et Système d'aide au stationnement (PDC) |
S502A=Oui S508A=Oui |
|||||||||
| 01 | Habillage de pare-chocs apprêté avant | M - PDC/SRA | 1 | 51118043959 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu pièces montage pare-chocs avant | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| Pour véhicules avec Version Canada et Lave-projecteurs et Système d'aide au stationnement (PDC) Attention ! Respecter l'information produits. Util iser les pièces « uniquement en combinaison avec ». |
L838A=Non S502A=Non S508A=Non |
|||||||||
| 01 | Habillage de pare-chocs apprêté avant | M - PDC | 1 | 51118041147 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Anneau de découplage de capteur PDC | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Jeu de caches | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Etiquette adhésive | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| 02 | Insert pare-chocs avant gauche | M | 1 | 51117907205 | $6.53 | Shop at ECS Tuning | ||||
| 02 | Insert pare-chocs avant droit | M | 1 | 51117907206 | $6.53 | Shop at ECS Tuning | ||||
| 03 | Guide pare-chocs latéral gauche | M | 1 | 51117900761 | $3.08 | Shop at ECS Tuning | ||||
| 03 | Guide pare-chocs latéral droit | M | 1 | 51117900762 | $3.08 | Shop at ECS Tuning | ||||
| 04 | Douille d'ecartement | 4 | 51117071270 | $0.56 | Shop at ECS Tuning | |||||
| 05 | Cache gauche en apprêt | M | 1 | 51118041149 | $13.04 | Shop at ECS Tuning | ||||
| 05 | Cache droit en apprêt | M | 1 | 51118041150 | $13.04 | Shop at ECS Tuning | ||||
| 06 | Cache anneau remorquage avant en apprêt | M | 1 | 51118043981 | $8.72 | Shop at ECS Tuning | ||||
| 07 | Grille centrale | M | 1 | 51117900764 | $55.59 | Shop at ECS Tuning | ||||
| 08 | Grille de décor av. cadre chrome gauche | 1 | 09/2009 | 51137157275 | $59.34 | Shop at ECS Tuning | ||||
| 08 | Grille de décor av. cadre chrome droit | 1 | 09/2009 | 51137157276 | $59.34 | Shop at ECS Tuning | ||||
| 08 | Grille de calandre noire côté droit | M PERFORMANCE | 1 | 51712155450 | $72.50 | arrêté | Shop at ECS Tuning | |||
| 08 | Grille de calandre noire côté gauche | M PERFORMANCE | 1 | 51712155451 | $72.50 | arrêté | Shop at ECS Tuning | |||
| 09 | Joint capot moteur avant | 1 | 51767143757 | $6.71 | Shop at ECS Tuning | |||||
| 10 | Appui de plaque d'immatric. en apprêt | M | 1 | 51117892575 | Shop at ECS Tuning | |||||
| Indiquer code couleur à la commande | ||||||||||
| 10 | Appui de plaque d'immatric. peint | CODE - UNI/MET. | 1 | 51110433102 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Japon |
L807A=Oui |
|||||||||
| 11 | Appui de plaque d'immatric. en apprêt | M | 1 | 51117892577 | $40.80 | Shop at ECS Tuning | ||||
| 12 | Support combine gauche | M | 1 | 51118042081 | $22.35 | Shop at ECS Tuning | ||||
| 12 | Support combine droit | M | 1 | 51118042082 | $22.35 | Shop at ECS Tuning | ||||
| Pour véhicules avec Système d'aide au stationnement (PDC) |
S508A=Oui |
|||||||||
| 13 | Jeu supports pour capteur PDC avant | PDC | 1 | 51110432249 | $17.68 | Shop at ECS Tuning | ||||
| 14 | Vis | SECHSKANT | 4 | 07143428231 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Vis Torx | ISA M6X18 SW | 4 | 07146959923 | $0.55 | Shop at ECS Tuning | ||||
| 16 | Vis a tole a six pans avec rondelle | ST4,8X16MM | 8 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
