Cache M bas de caisse / passage roue for BMW 3 Series E93 M3 (2010)

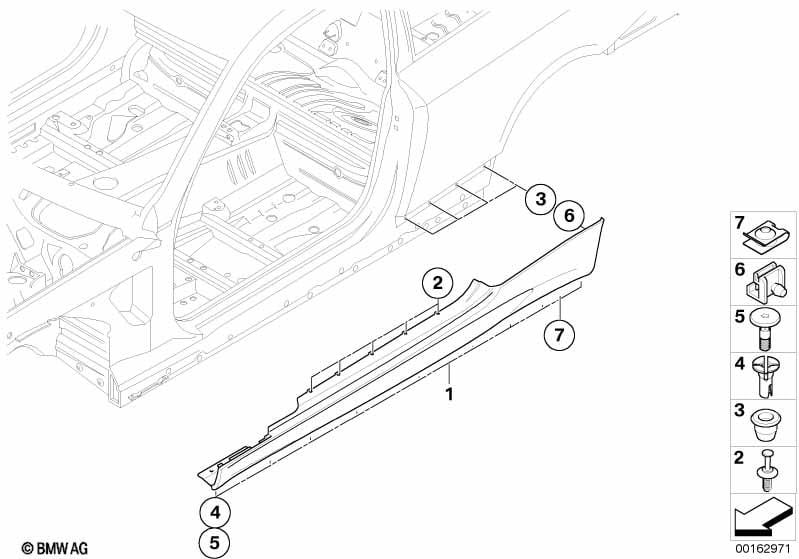

This Cache M bas de caisse / passage roue technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Baguette de seuil apprêtée côté gauche | M | 1 | 51777898979 | $183.66 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| 01 | Baguette de seuil apprêtée côté droit | M | 1 | 51777898980 | $183.66 | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Film de protection | 90X60MM | 1 | 07148045544 | $3.38 | Shop at ECS Tuning | ||||
| Indiquer code couleur à la commande | ||||||||||
| 01 | Baguette de seuil peinte, gauche | CODE - UNI/MET. | 1 | 51770037011 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| 01 | Baguette de seuil peinte, droite | CODE - UNI/MET. | 1 | 51770037012 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| uniquement en combinaison avec | ||||||||||
| -- | Film de protection | 90X60MM | 1 | 07148045544 | $3.38 | Shop at ECS Tuning | ||||
| 02 | Rivet | D = 6MM | 10 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 03 | Passe-fils vert | D=9,1MM | 10 | 51711932996 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Clip entretoise | 18 | 07147122912 | $0.48 | Shop at ECS Tuning | |||||
| 05 | Goupille | 18 | 07147122913 | $0.23 | Shop at ECS Tuning | |||||
| 06 | Clip | 6 | 51717066220 | $1.11 | Shop at ECS Tuning | |||||
| 06 | Clip | BLAU | 2 | 51777170955 | $1.44 | Shop at ECS Tuning | ||||
| 07 | Clip écrou autobloquant | ST 4.8 -ZNS3 | 4 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Rivet | 2 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
