Support arrière for BMW 3 Series E93 M3 (2010)
This Support arrière technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support de pare-chocs arrière | M | 1 | 51127900766 | $638.84 | +vieille matière | Shop at ECS Tuning | |||
| 02 | Rondelle joint | 2 | 51127131741 | $1.23 | Shop at ECS Tuning | |||||
| 03 | Ecrou à six pans | M12X1,5-8-ZNS3 | 6 | 07119904578 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Pare-chocs arrrière gauche | M | 1 | 51128040873 | $18.52 | Shop at ECS Tuning | ||||
| 04 | Pare-chocs arrrière droit | M | 1 | 51128040874 | $18.52 | Shop at ECS Tuning | ||||
| 05 | Guide AR gauche | M | 1 | 51127900841 | $31.90 | Shop at ECS Tuning | ||||
| 05 | Guide arrière droit | M | 1 | 51127900842 | $31.90 | Shop at ECS Tuning | ||||
| 06 | Vis a tole a six pans avec rondelle | ST4,8X16MM | X | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Ecrou tôlé | ST4,8-13-ZNS3 | 6 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Clip écrou autobloquant | ST 4.8 -ZNS3 | 9 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Vis à tôle à six pans | ST4,8X16-ZNS3 | 6 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Ecrou hexagonal à collet | 4 | 07147154227 | $0.62 | Shop at ECS Tuning | |||||
| 11 | Appui | L=100MM | 2 | 16111181918 | $1.65 | Shop at ECS Tuning | ||||
| 12 | Capuchon | 1 | 51127161661 | $0.71 | Shop at ECS Tuning | |||||
| 12 | Capuchon | 1 | 51127161662 | $0.71 | Shop at ECS Tuning |
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E93 M3 Support arrière?

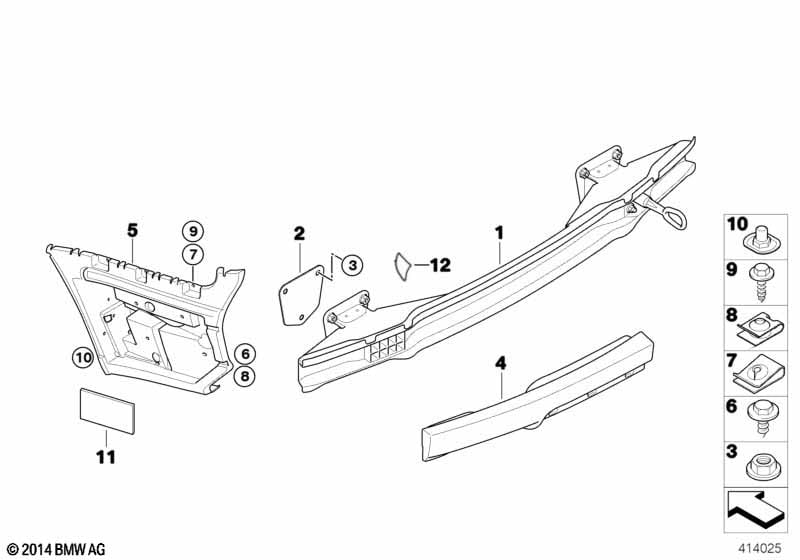

- This technical diagram illustrates the Support arrière within the Equipement véhicule group for the 3 Series E93 M3 produced during 2010. It provides a detailed exploded view of the components, identifying key parts such as the Support de pare-chocs arrière (Part #51127900766).
