Pavillon for BMW MINI Clubman R55 Cooper (2006)

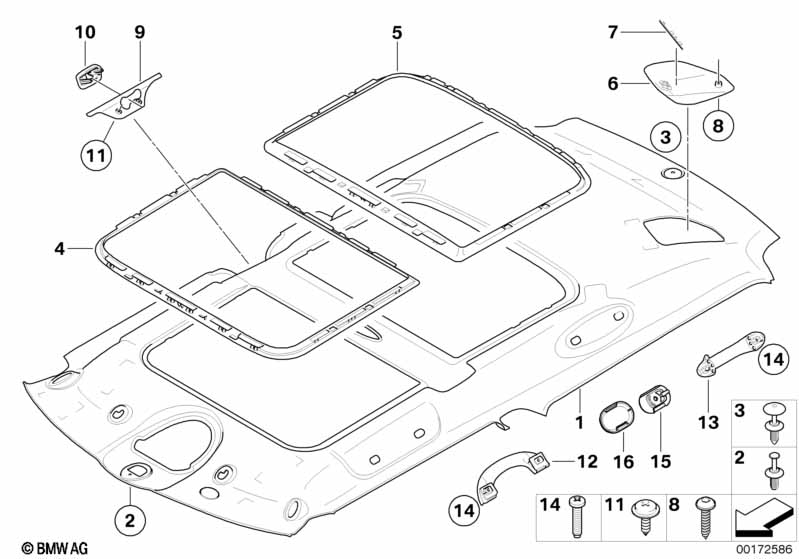

This Pavillon technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Toit ouvrant en verre, électrique |
S403A=Oui |
||||||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Non S4UGA=Oui S418A=Oui |
|||||||||
| 01 | Garnissage toit ouvrant modèle 2 places | HELLGRAU | 1 | 06/2008 | 51442755926 | arrêté, +vieille matière | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Non S4UGA=Oui S418A=Non |
|||||||||
| 01 | Garnissage toit ouvrant modèle 2 places | HELLGRAU | 1 | 06/2008 | 51442755922 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Oui S4UGA=Oui S418A=Oui |
|||||||||
| 01 | Garnissage toit ouvrant modèle 2 places | CARBON BLACK | 1 | 06/2008 | 51442755927 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Oui S4UGA=Non S418A=Non |
|||||||||
| 01 | Garnissage toit ouvrant modèle 3 places | CARBON BLACK | 1 | 06/2008 | 51442755919 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Non S4UGA=Non S418A=Non |
|||||||||
| 01 | Garnissage toit ouvrant modèle 3 places | HELLGRAU | 1 | 06/2008 | 51442755918 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Oui S4UGA=Non S418A=Oui |
|||||||||
| 01 | Garnissage toit ouvrant modèle 3 places | CARBON BLACK | 1 | 06/2008 | 51442756245 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Oui S4UGA=Oui S418A=Non |
|||||||||
| 01 | Garnissage toit ouvrant modèle 2 places | CARBON BLACK | 1 | 06/2008 | 51442755923 | +vieille matière | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges et Pack compartiment à bagages |
S4AAA=Non S4UGA=Non S418A=Oui |
|||||||||
| 01 | Garnissage toit ouvrant modèle 3 places | HELLGRAU | 1 | 06/2008 | 51442756244 | arrêté | Shop at ECS Tuning | |||
| 02 | Rivet | D = 6MM | 1 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Oui |
|||||||||
| 03 | Rivet | CARBON BLACK | 1 | 51442756902 | $0.65 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Non |
|||||||||
| 03 | Rivet | HELLGRAU | 1 | 08/2010 | 51442756901 | $0.65 | Shop at ECS Tuning | |||
| 04 | Cache avant de ciel de pavillon | CARBON BLACK | 1 | 51442753146 | $36.30 | Shop at ECS Tuning | ||||
| 05 | Cache de pavillon arriere | CARBON BLACK | 1 | 51442753148 | $36.30 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges |
S4AAA=Non S4UGA=Non |
|||||||||
| 06 | Cache sortie ceinture ciel de pavillon | HELLGRAU | 1 | 03/2009 | 51442756039 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges |
S4AAA=Oui S4UGA=Non |
|||||||||
| 06 | Cache sortie ceinture ciel de pavillon | SCHWARZ | 1 | 03/2009 | 51442756038 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges |
S4AAA=Non S4UGA=Non |
|||||||||
| 07 | Cache | HELLGRAU | 1 | 03/2009 | 51442756911 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Banquette arrière 2 sièges |
S4AAA=Oui S4UGA=Non |
|||||||||
| 07 | Cache | CARBON BLACK | 1 | 03/2009 | 51442756912 | Shop at ECS Tuning | ||||
| Pour véhicules avec Banquette arrière 2 sièges |
S4UGA=Non |
|||||||||
| 08 | Vis a tole tête bombee | ST4,2X20MM | 1 | 03/2009 | 51437066513 | $0.16 | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Oui |
|||||||||
| 09 | Ecran p étrier de fermeture droite | CARBON BLACK | 1 | 51442757581 | $3.30 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Non |
|||||||||
| 09 | Ecran p étrier de fermeture droite | HELLGRAU | 1 | 08/2010 | 51442757580 | $3.30 | arrêté | Shop at ECS Tuning | ||
| 10 | Cache d'étrier de fermeture supérieur | 1 | 51442757520 | $5.10 | Shop at ECS Tuning | |||||
| 11 | Vis a tole tête bombee | ST4,2X12MM | 2 | 07149128048 | $0.36 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Oui |
|||||||||
| 12 | Poignée de maintien avant | CARBON BLACK | 2 | 51162754168 | $10.22 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Non |
|||||||||
| 12 | Poignée de maintien avant | HELLGRAU | 2 | 08/2010 | 51162754169 | $10.22 | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Oui |
|||||||||
| 13 | Poignee de maintien arriere gauche | CARBON BLACK | 1 | 51442753143 | $8.48 | Shop at ECS Tuning | ||||
| 13 | Poignee de maintien arriere droite | CARBON BLACK | 1 | 51442753144 | $8.48 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite |
S4AAA=Non |
|||||||||
| 13 | Poignee de maintien arriere gauche | HELLGRAU | 1 | 08/2010 | 51442753141 | $8.48 | Shop at ECS Tuning | |||
| 13 | Poignee de maintien arriere droite | HELLGRAU | 1 | 08/2010 | 51442753142 | $8.48 | Shop at ECS Tuning | |||
| 14 | Vis bombée av. rainure racleuse peinture | M5X22 | 8 | 07149175903 | $0.44 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Kit rangement |
S4AAA=Oui S493A=Non |
|||||||||
| 16 | Capuchon de protection ciel de pavillon | CARBON BLACK | 2 | 51162754163 | $1.68 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
