Habillage Aerokit arrière for BMW MINI Clubman R55 Cooper (2006)

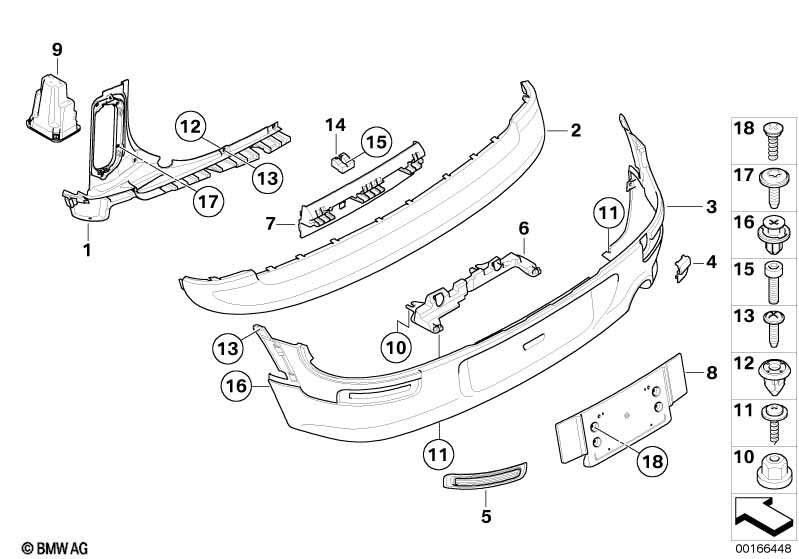

This Habillage Aerokit arrière technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Kit aérodynamique |
S7ARA=Oui |
||||||||
| 01 | Logement pare-choc gauche | 1 | 04/2011 | 51127167563 | $63.57 | +vieille matière | Shop at ECS Tuning | |||
| 01 | Logement pare-choc droite | 1 | 04/2011 | 51127167564 | $63.57 | +vieille matière | Shop at ECS Tuning | |||
| Code peinture noir U668. Code peinture Pure Silver M900. |
||||||||||
| 02 | Recouvrement pare-chocs arrière apprêté | 1 | 04/2011 | 51122757760 | $136.32 | Shop at ECS Tuning | ||||
| 03 | Habillage de pare-chocs apprêté arrière | 1 | 04/2011 | 51122757758 | $231.25 | +vieille matière | Shop at ECS Tuning | |||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu pièces montage pare-chocs arrière | VALUE PARTS | 1 | 04/2011 | 51122411407 | Shop at ECS Tuning | ||||
| Pour véhicules avec Syst. d'aide au Stationnement AR (PDC) |
S507A=Oui |
|||||||||
| 03 | Habillage de pare-chocs apprêté arrière | PDC | 1 | 04/2011 | 51122757759 | $350.37 | +vieille matière | Shop at ECS Tuning | ||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu pièces montage pare-chocs arrière | VALUE PARTS | 1 | 04/2011 | 51122411407 | Shop at ECS Tuning | ||||
| 04 | Ecran d'anneau de remorquage couche fond | 1 | 04/2011 | 51122757761 | $9.88 | Shop at ECS Tuning | ||||
| 05 | Grille gauche | 1 | 04/2011 | 51122756927 | $36.19 | Shop at ECS Tuning | ||||
| 05 | Grille droite | 1 | 04/2011 | 51122756928 | $36.19 | Shop at ECS Tuning | ||||
| 06 | Guide inférieur central | 1 | 04/2011 | 51127250966 | Shop at ECS Tuning | |||||
| 07 | Element | 1 | 04/2011 | 51122757534 | $49.95 | +vieille matière | Shop at ECS Tuning | |||
| 08 | Cale de plaque d'immatriculation | 1 | 04/2011 | 51122756919 | $47.77 | +vieille matière | Shop at ECS Tuning | |||
| 09 | Dégazage arrière | 1 | 04/2011 | 64226976991 | $21.07 | Shop at ECS Tuning | ||||
| 10 | écrou borgne plastique avec rondelle | D=18MM | 4 | 04/2011 | 51161943122 | $0.39 | Shop at ECS Tuning | |||
| 10 | Ecrou plast. axe à filetage à pas gros | M6 | 4 | 04/2011 | 07147336362 | Shop at ECS Tuning | ||||
| 11 | Vis à tête bombée | L=18MM | 2 | 04/2011 | 07147146367 | $0.29 | Shop at ECS Tuning | |||
| 12 | Ecrou extensible | 8X8 MM | 2 | 04/2011 | 51127020321 | $0.47 | Shop at ECS Tuning | |||
| 13 | Vis à tête bombée | L=18MM | 2 | 04/2011 | 07147146367 | $0.29 | Shop at ECS Tuning | |||
| 14 | Butoir caoutchouc porte arrière | 1 | 04/2011 | 51492756547 | $3.42 | Shop at ECS Tuning | ||||
| 15 | Vis cylindrique | 1 | 04/2011 | 51122757174 | $0.59 | Shop at ECS Tuning | ||||
| 16 | Rivet | 2 | 04/2011 | 07130702966 | $0.48 | Shop at ECS Tuning | ||||
| 17 | Vis Torx | 8 | 04/2011 | 07142754323 | $0.36 | Shop at ECS Tuning | ||||
| 18 | Vis de crosse pour matiere plastique | TS5X25-ZNNID-SW | 4 | 04/2011 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
