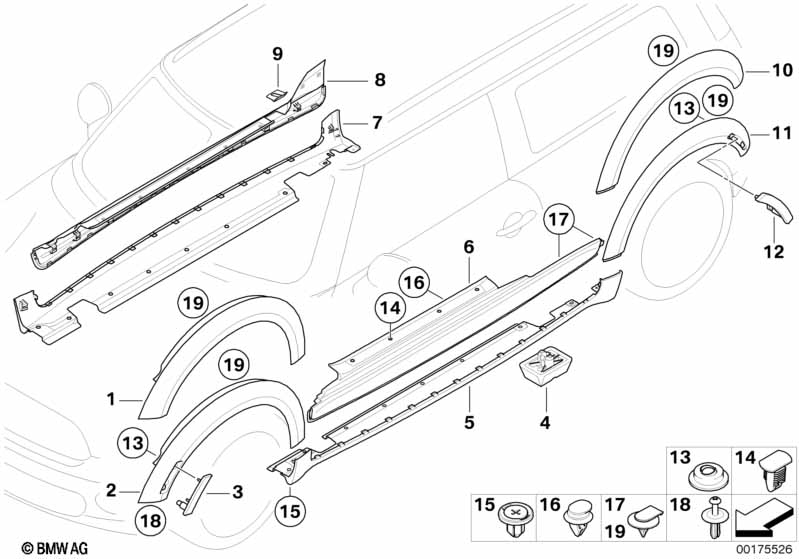

Cache bas de caisse / passage roue for BMW MINI Clubman R55 Cooper (2006)
This Cache bas de caisse / passage roue technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Kit aérodynamique JCW ou Kit aérodynamique |
S3A1A=Oui S7ARA=Oui |
||||||||
| Pour véhicules avec Kit aérodynamique JCW ou Kit aérodynamique |
S3A1A=Oui S7ARA=Oui |
|||||||||
| 01 | Elargissement panneau latéral avant ga. | 1 | 08/2012 | 51772757209 | Shop at ECS Tuning | |||||
| 01 | Elargissement panneau latéral avant ga. | 1 | 51777349421 | Shop at ECS Tuning | ||||||
| 01 | Elargissement panneau latéral avant dr. | 1 | 51777349422 | Shop at ECS Tuning | ||||||
| 04 | Support de fixation de pont élévateur | 4 | 51717039760 | $14.75 | Shop at ECS Tuning | |||||
| 05 | Cache de bas de marches inférieur gauche | SCHWARZ | 1 | 51772756825 | $96.17 | +vieille matière | Shop at ECS Tuning | |||
| 06 | Cache de bas de marches supérieur gauche | GRUNDIERT | 1 | 51772757763 | $279.81 | +vieille matière | Shop at ECS Tuning | |||
| 07 | Cache de bas de marches inférieur droit | SCHWARZ | 1 | 51772756826 | $96.17 | +vieille matière | Shop at ECS Tuning | |||
| 08 | Cache de bas de marches supérieur droit | GRUNDIERT | 1 | 51772757764 | $279.81 | +vieille matière | Shop at ECS Tuning | |||
| 09 | Cache d'étrier de fermeture inférieur | 1 | 51222757768 | $17.33 | +vieille matière | Shop at ECS Tuning | ||||
| 10 | Elargissement panneau latéral ar. ga | 1 | 51777167593 | Shop at ECS Tuning | ||||||
| 10 | Elargissement panneau latéral ar. dr | 1 | 51777167594 | Shop at ECS Tuning | ||||||
| 14 | Clip | 8 | 51711496621 | $0.35 | Shop at ECS Tuning | |||||
| 15 | Rivet | 8 | 07130702966 | $0.48 | Shop at ECS Tuning | |||||
| 16 | Clip | SCHWARZ / BLACK | 18 | 07131480419 | $0.75 | Shop at ECS Tuning | ||||
| 17 | Clip | 4 | 07137073915 | $0.75 | Shop at ECS Tuning | |||||
| 18 | Rivet | 2 | 51472754477 | $1.12 | Shop at ECS Tuning | |||||
| 19 | Clip | X | 07132757821 | $0.75 | Shop at ECS Tuning | |||||
Note
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
