Filet de séparation for BMW MINI Clubman R55 Cooper (2006)

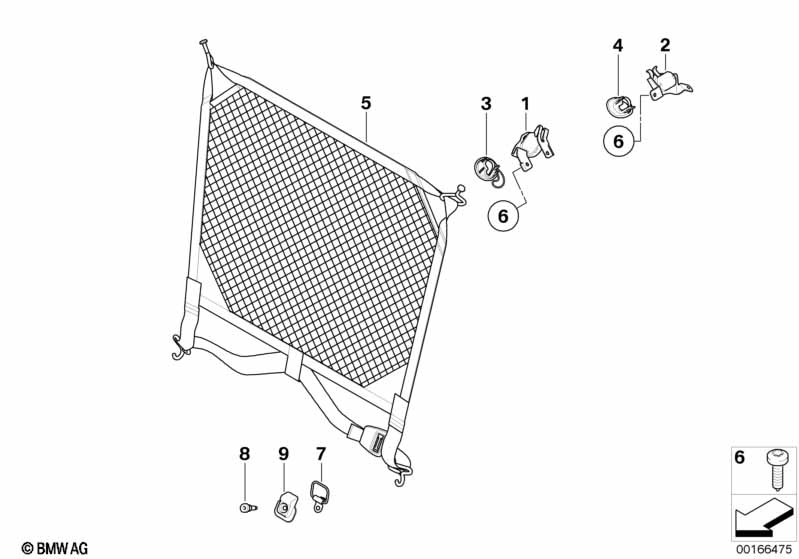

This Filet de séparation technical drawing provides a detailed breakdown of the assembly for the MINI Clubman R55 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Pack compartiment à bagages |
S418A=Oui |
|||||||||
| 01 | Fixation AvG filet pare-bagages | 1 | 06/2008 | 51476952369 | $17.74 | Shop at ECS Tuning | ||||
| 01 | Fixation AvD filet pare-bagages | 1 | 06/2008 | 51476952370 | $17.74 | Shop at ECS Tuning | ||||
| 02 | Fixation ArG filet pare-bagages | 1 | 06/2008 | 51476952371 | $17.74 | Shop at ECS Tuning | ||||
| 02 | Fixation ArD filet pare-bagages | 1 | 06/2008 | 51476952372 | $17.74 | Shop at ECS Tuning | ||||
| Pour véhicules avec Pavillon anthracite et Pack compartiment à bagages |
S4AAA=Non S418A=Oui |
|||||||||
| 03 | Cache,lanière susp. filet separat,av.gau | GRAU | 1 | 06/2008 | 51472756267 | $7.31 | Shop at ECS Tuning | |||
| 03 | Cache,lanière susp. filet separat,av.dro | GRAU | 1 | 06/2008 | 51472756268 | $7.31 | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Pack compartiment à bagages |
S4AAA=Oui S418A=Oui |
|||||||||
| 03 | Cache,lanière susp. filet separat,av.gau | SCHWARZ | 1 | 06/2008 | 51472756265 | $7.31 | Shop at ECS Tuning | |||
| 03 | Cache,lanière susp. filet separat,av.dro | SCHWARZ | 1 | 06/2008 | 51472756266 | $7.31 | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Pack compartiment à bagages |
S4AAA=Non S418A=Oui |
|||||||||
| 04 | Cache,lanière susp. filet separat,ar.gau | GRAU | 1 | 06/2008 | 51472756905 | $7.31 | Shop at ECS Tuning | |||
| 04 | Cache,lanière susp. filet separat,ar.dro | GRAU | 1 | 06/2008 | 51472756906 | $7.31 | Shop at ECS Tuning | |||
| Pour véhicules avec Pavillon anthracite et Pack compartiment à bagages |
S4AAA=Oui S418A=Oui |
|||||||||
| 04 | Cache,lanière susp. filet separat,ar.gau | SCHWARZ | 1 | 06/2008 | 51472756903 | $7.31 | Shop at ECS Tuning | |||
| 04 | Cache,lanière susp. filet separat,ar.dro | SCHWARZ | 1 | 06/2008 | 51472756904 | $7.31 | Shop at ECS Tuning | |||
| Pour véhicules avec Pack compartiment à bagages |
S418A=Oui |
|||||||||
| 05 | Filet coffre arrière | 1 | 06/2008 | 51476952382 | $198.14 | Shop at ECS Tuning | ||||
| 06 | Vis autotaraudeuse | M6X14,5 ZNS3 | 8 | 06/2008 | 07146967731 | $0.36 | Shop at ECS Tuning | |||
| 07 | Boucle d'arrimage | 2 | 06/2008 | 51477129196 | $7.23 | Shop at ECS Tuning | ||||
| 08 | Vis | 2 | 06/2008 | 51472756568 | $0.80 | Shop at ECS Tuning | ||||
| 09 | Cache, anneau de serrage | 2 | 06/2008 | 51472756151 | $1.38 | Shop at ECS Tuning | ||||
