Conduite d'air for BMW 1 Series E88 118i (2013)

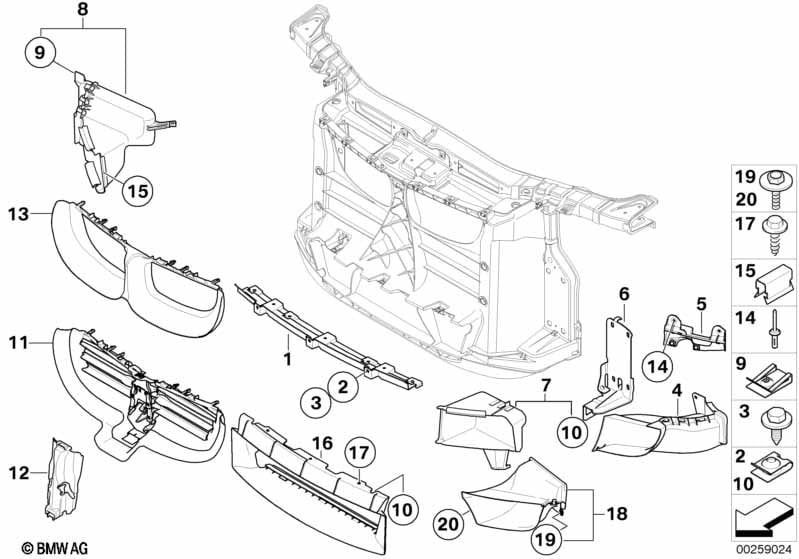

This Conduite d'air technical drawing provides a detailed breakdown of the assembly for the 1 Series E88 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Lave-projecteurs et Kit aérodynamique M |
S502A=Oui S715A=Oui |
|||||||||
| 05 | Support gauche | 1 | 51647836703 | $7.09 | Shop at ECS Tuning | |||||
| 05 | Appui droit | 1 | 51647836704 | $7.09 | Shop at ECS Tuning | |||||
| 06 | Plaque logem. mod.refroidiss.bas gauche | 1 | 51647117811 | $8.98 | Shop at ECS Tuning | |||||
| 06 | Plaque logem. mod.refroidiss.bas droite | 1 | 51647117812 | $8.98 | Shop at ECS Tuning | |||||
| 09 | Clip écrou autobloquant | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 13 | Conduit d'air supérieur | 1 | 09/2009 | 51747189263 | $14.75 | Shop at ECS Tuning | ||||
| Pour véhicules avec Lave-projecteurs et Kit aérodynamique M |
S502A=Oui S715A=Oui |
|||||||||
| 14 | Rivet borgne pliant | 6X21MM | 1 | 51118222901 | $0.82 | Shop at ECS Tuning | ||||
