Caches et joints porte avant for BMW MINI R50 Cooper (2004)

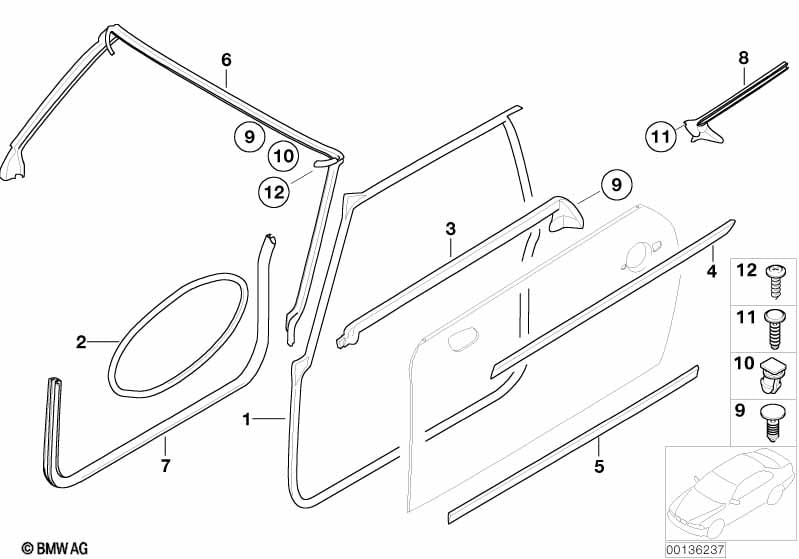

This Caches et joints porte avant technical drawing provides a detailed breakdown of the assembly for the MINI R50 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Joint de porte gauche | 1 | 51767151383 | $75.54 | Shop at ECS Tuning | |||||
| 01 | Joint de porte droit | 1 | 51767151384 | $75.54 | Shop at ECS Tuning | |||||
| 02 | Protège-arête découpe porte avant | 2 | 51410734387 | $10.64 | arrêté | Shop at ECS Tuning | ||||
| 03 | Joint interieur de vitre gauche | 1 | 51327039865 | $45.46 | Shop at ECS Tuning | |||||
| 03 | Etoup.d.puits d.fenet.inter.droite | 1 | 51337039866 | $45.46 | Shop at ECS Tuning | |||||
| 04 | Cache logement ext. gauche | 1 | 51337071669 | $27.83 | Shop at ECS Tuning | |||||
| 04 | Cache logement ext. droit | 1 | 51337071670 | $27.83 | Shop at ECS Tuning | |||||
| 05 | Joint de porte/entrée avant | 2 | 51337050534 | $15.11 | Shop at ECS Tuning | |||||
| 09 | Clip | 6 | 07130561277 | $0.21 | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
