Système de fermeture porte arrière for BMW 3 Series F30 LCI 320i (2015)

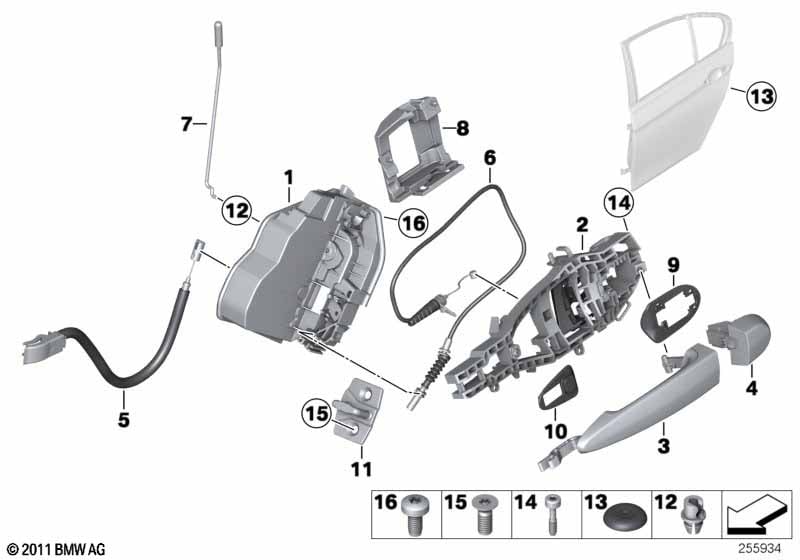

This Système de fermeture porte arrière technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2015.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Serrure système gauche | 1 | 51227318417 | arrêté | Shop at ECS Tuning | |||||
| 01 | Serrure système droit | 1 | 51227318418 | arrêté | Shop at ECS Tuning | |||||
| 02 | Support de poignée extér. porte gau. | CHINA | 1 | 51217301327 | Shop at ECS Tuning | |||||
| 02 | Support de poignée extér. porte dro. | CHINA | 1 | 51217301328 | Shop at ECS Tuning | |||||
| 03 | Support de poignée en apprêt gauche | 1 | 51217207561 | $22.10 | Shop at ECS Tuning | |||||
| 03 | Support de poignée en apprêt droit | 1 | 51217207562 | $22.10 | Shop at ECS Tuning | |||||
| Indiquer code couleur à la commande | ||||||||||
| 03 | Poignée peinte à droite | CODE - UNI/MET. | 1 | 51210445184 | arrêté, NoS | Shop at ECS Tuning | ||||
| 03 | Poignée peinte à gauche | CODE - UNI/MET. | 1 | 51210445185 | arrêté, NoS | Shop at ECS Tuning | ||||
| Pour véhicules avec Accès confort et Kit éclairage |
S322A=Oui S563A=Oui |
|||||||||
| 04 | Cache de porte gauche en apprêt | 1 | 51217162433 | $22.50 | Shop at ECS Tuning | |||||
| 04 | Cache de porte droite en apprêt | 1 | 51217162434 | $22.50 | Shop at ECS Tuning | |||||
| Pour véhicules avec Accès confort et Kit éclairage Indiquer code couleur à la commande |
S322A=Oui S563A=Oui |
|||||||||
| 04 | Cache peint gauche | CODE - UNI/MET. | 1 | 51210399181 | $81.24 | arrêté, NoS | Shop at ECS Tuning | |||
| 04 | Cache peint droit | CODE - UNI/MET. | 1 | 51210399182 | arrêté, NoS | Shop at ECS Tuning | ||||
| Pour véhicules avec Accès confort et Kit éclairage |
S322A=Non S563A=Oui |
|||||||||
| 04 | Cache de porte gauche en apprêt | 1 | 51217162433 | $22.50 | Shop at ECS Tuning | |||||
| 04 | Cache de porte droite en apprêt | 1 | 51217162434 | $22.50 | Shop at ECS Tuning | |||||
| Pour véhicules avec Accès confort et Kit éclairage Indiquer code couleur à la commande |
S322A=Oui S563A=Non |
|||||||||
| 04 | Cache peint gauche | CODE - UNI/MET. | 1 | 51210399177 | $59.43 | arrêté, NoS | Shop at ECS Tuning | |||
| 04 | Cache peint droit | CODE - UNI/MET. | 1 | 51210399178 | arrêté, NoS | Shop at ECS Tuning | ||||
| Pour véhicules avec Accès confort et Kit éclairage |
S322A=Oui S563A=Non |
|||||||||
| 04 | Cache de porte gauche en apprêt | 1 | 51217162431 | $22.50 | Shop at ECS Tuning | |||||
| 04 | Cache de porte droite en apprêt | 1 | 51217162432 | $22.50 | Shop at ECS Tuning | |||||
| Pour véhicules avec Accès confort et Kit éclairage |
S322A=Non S563A=Non |
|||||||||
| 04 | Cache de porte gauche en apprêt | 1 | 51217162431 | $22.50 | Shop at ECS Tuning | |||||
| 04 | Cache de porte droite en apprêt | 1 | 51217162432 | $22.50 | Shop at ECS Tuning | |||||
| 05 | Câble Bowden ouverture intér. porte arr. | 2 | 51227259837 | Shop at ECS Tuning | ||||||
| 06 | Cable à tirette, poign.extér. porte arr | 2 | 51227259836 | Shop at ECS Tuning | ||||||
| 07 | Tringle de cde de porte AR gauche | 1 | 51227270003 | Shop at ECS Tuning | ||||||
| 07 | Tringle de cde de porte AR droit | 1 | 51227270004 | Shop at ECS Tuning | ||||||
| 08 | Insonorisation porte gauche | 1 | 51227332267 | Shop at ECS Tuning | ||||||
| 08 | Insonorisation porte droite | 1 | 51227332268 | Shop at ECS Tuning | ||||||
| 09 | Appui de cylindre de serrure gauche | 1 | 51217060667 | $1.60 | Shop at ECS Tuning | |||||
| 09 | Appui de cylindre de serrure droit | 1 | 51217060668 | $1.60 | Shop at ECS Tuning | |||||
| 10 | Appui de support de poignée gauche | 1 | 51217060293 | $1.35 | Shop at ECS Tuning | |||||
| 10 | Appui de support de poignée droit | 1 | 51217060294 | $1.35 | Shop at ECS Tuning | |||||
| 11 | Etrier de fermeture | 2 | 51217312545 | Shop at ECS Tuning | ||||||
| 12 | Piece d'arret pour tiges | 2 | 51221817032 | $0.31 | Shop at ECS Tuning | |||||
| 13 | Bouchon | D=20MM | 2 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 14 | Vis à six pans creux | M5 | 1 | 51217133972 | $1.14 | Shop at ECS Tuning | ||||
| 15 | Vis torx a tete noyee | ISA M8X28 | 4 | 51217130110 | $0.52 | Shop at ECS Tuning | ||||
| 16 | Vis Torx | M6X13 ZNNID SW | 6 | 07147186859 | $0.53 | Shop at ECS Tuning | ||||
