Caches et joints porte arrière for BMW 4 Series G26 Gran Coupé LCI 430dX (2023)

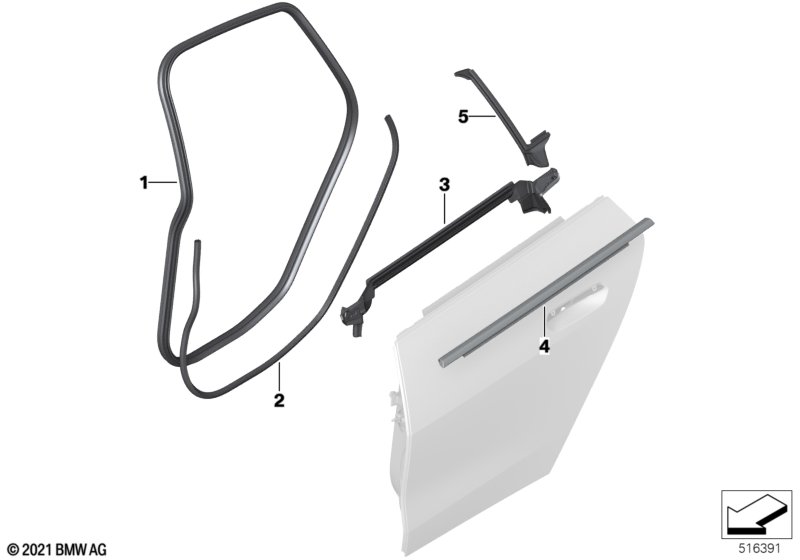

This Caches et joints porte arrière technical drawing provides a detailed breakdown of the assembly for the 4 Series G26 Gran Coupé LCI 430dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2023.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Protection de bord porte arrière | 2 | 51727482948 | Shop at ECS Tuning | ||||||
| 02 | Joint de porte | 2 | 51765A400A9 | Shop at ECS Tuning | ||||||
| 02 | Joint de porte | 2 | 51727390750 | Shop at ECS Tuning | ||||||
| uniquement en combinaison avec | ||||||||||
| -- | Jeu gabarit porte arrière | 1 | 01295A400A8 | Shop at ECS Tuning | ||||||
| 03 | Joint intérieur porte arrière gauche | 1 | 51357482951 | Shop at ECS Tuning | ||||||
| 03 | Joint intérieur porte arrière droite | 1 | 51357482952 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Individual Exterieur Line alu satiné |
S3MBA=Non |
|||||||||
| 04 | Couvre-joint extérieur porte ArG | SCHWARZ | 1 | 51355A5C0B5 | Shop at ECS Tuning | |||||
| 04 | Couvre-joint extérieur porte ArD | SCHWARZ | 1 | 51355A5C0B6 | Shop at ECS Tuning | |||||
| Pour véhicules avec Individual Exterieur Line alu satiné |
S3MBA=Oui |
|||||||||
| 04 | Couvre-joint extérieur porte ArG | ALU SATINIERT | 1 | 51357482973 | Shop at ECS Tuning | |||||
| 04 | Couvre-joint extérieur porte ArD | ALU SATINIERT | 1 | 51357482974 | Shop at ECS Tuning | |||||
| 05 | Joint garniture de montant C gauche | 1 | 51137482955 | Shop at ECS Tuning | ||||||
| 05 | Joint garniture de montant C droite | 1 | 51137482956 | Shop at ECS Tuning | ||||||
