Mécanisme de fenêtre de porte avant for BMW 2 Series F74 Gran Coupé 216 (2025)

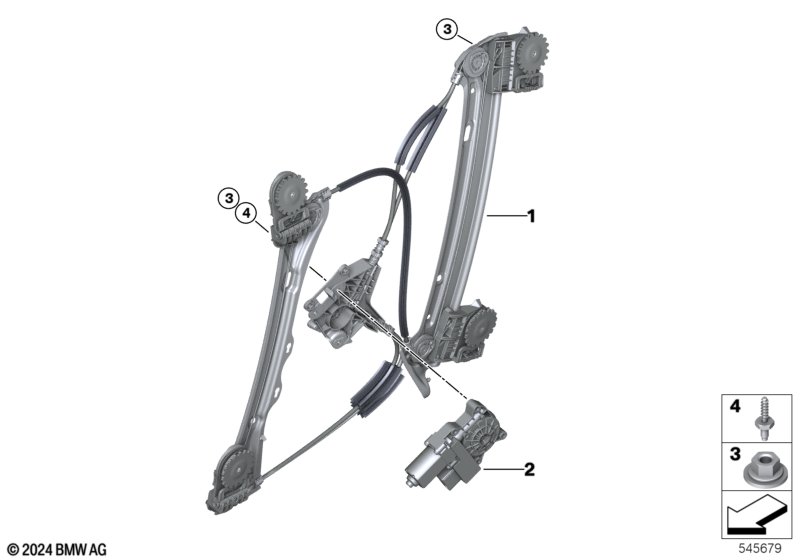

This Mécanisme de fenêtre de porte avant technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 216. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Support de porte avant gauche | 1 | 51335A638D7 | Shop at ECS Tuning | ||||||
| 01 | Support de porte avant droite | 1 | 51335A638D8 | Shop at ECS Tuning | ||||||
| 02 | Mécanisme de lève-glace | 1 | 67625A594D1 | Shop at ECS Tuning | ||||||
| 02 | Mécanisme de lève-glace | 1 | 67625A594D2 | Shop at ECS Tuning | ||||||
| 03 | Goujon à double filetage | 3 | 07144876389 | Shop at ECS Tuning | ||||||
| 04 | Ecrou à six pans | M6 | 16 | 07146951627 | $0.53 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 216 Mécanisme de fenêtre de porte avant?
- This technical diagram illustrates the Mécanisme de fenêtre de porte avant within the Equipement véhicule group for the 2 Series F74 Gran Coupé 216 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Support de porte avant gauche (Part #51335A638D7).
- Which models use the hardware listed in this Mécanisme de fenêtre de porte avant?
- The hardware and components featured in the Mécanisme de fenêtre de porte avant are specific to the 2 Series F74 Gran Coupé 216 produced during 2025. These technical specifications ensure that parts like the Support de porte avant gauche (51335A638D7) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Mécanisme de fenêtre de porte avant assembly?
- Each item in the Mécanisme de fenêtre de porte avant corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 216, you can identify the Support de porte avant gauche by locating its position on the schematic, which then links to the official BMW part number 51335A638D7 for the Equipement véhicule section.
