Siege av-cran for BMW 5 Series E12 518 (1976)

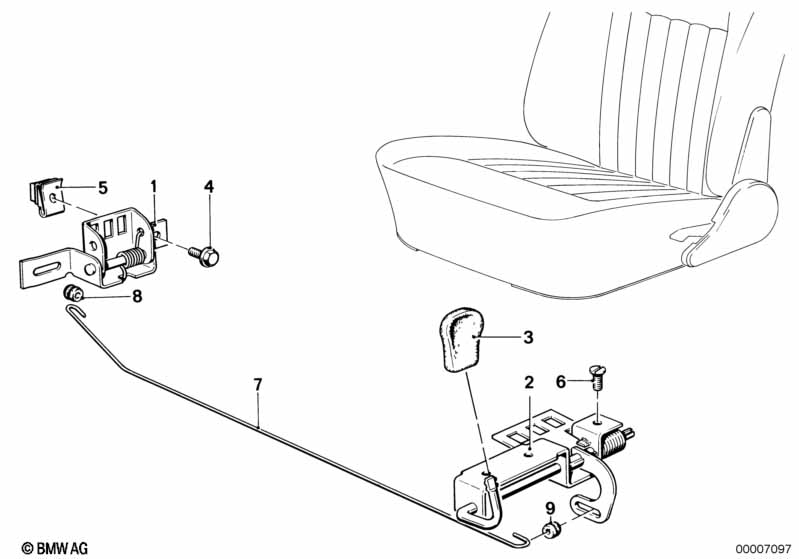

This Siege av-cran technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 518. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Exécution 501-502/521-522-523/541-542- 543 |
|||||||||
| 01 | Detente de siege int.droite | 2 | 08/1979 | 52101807472 | arrêté | Shop at ECS Tuning | ||||
| 03 | Poignee | 2 | 08/1979 | 52101803743 | $10.19 | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M6X25 | X | 08/1979 | 52101820255 | $0.35 | arrêté | Shop at ECS Tuning | ||
| 05 | Porte-ecrou | X | 05/1977 | 51161813920 | $1.45 | arrêté | Shop at ECS Tuning | |||
| 06 | Vis à tête noyée | M6X12 | 6 | 08/1979 | 52101817063 | $0.92 | Shop at ECS Tuning | |||
| 07 | Tringle de liaison | 2 | 08/1979 | 52101817083 | $3.74 | arrêté | Shop at ECS Tuning | |||
| 08 | Douille | 2 | 08/1979 | 52208238999 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Douille | 2 | 08/1979 | 52101807432 | $7.28 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
