Rail de siege de siege avant for BMW 3 Series E21 323i (1979)

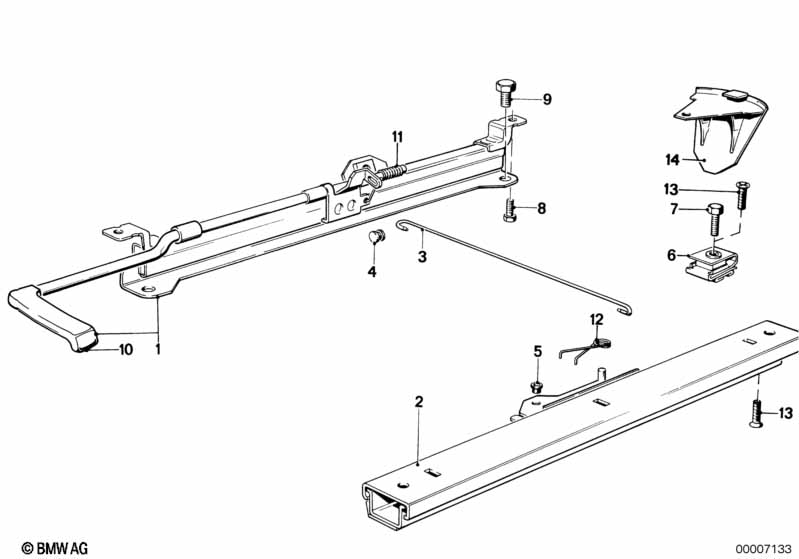

This Rail de siege de siege avant technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 304-305/341 | |||||||||
| 01 | Glissiere interieure gauche de siege | 1 | 09/1978 | 52101867961 | $54.68 | arrêté | Shop at ECS Tuning | |||
| 01 | Glissiere interieure droite de siege | 1 | 09/1978 | 52101867962 | $54.68 | Shop at ECS Tuning | ||||
| 01 | Glissiere de siege rallongee int. gauche | 1 | 09/1978 | 52101900993 | Shop at ECS Tuning | |||||
| 01 | Rail de siege long int.droit | 1 | 09/1978 | 52101900994 | arrêté | Shop at ECS Tuning | ||||
| 02 | Glissiere exterieure gauche de siege | 1 | 09/1978 | 52101867963 | $29.76 | arrêté | Shop at ECS Tuning | |||
| 02 | Glissiere exterieure droite de siege | 1 | 09/1978 | 52101867964 | $28.79 | arrêté | Shop at ECS Tuning | |||
| 02 | Glissiere de siege rallongee ext g | 1 | 09/1978 | 52101900995 | arrêté | Shop at ECS Tuning | ||||
| 02 | Rail de siege long ext.droit | 1 | 09/1978 | 52101900996 | arrêté | Shop at ECS Tuning | ||||
| 03 | Tringle de liaison | 2 | 09/1978 | 52101868865 | $2.34 | Shop at ECS Tuning | ||||
| 04 | Douille | 2 | 09/1978 | 52101807432 | $7.28 | arrêté | Shop at ECS Tuning | |||
| 05 | Douille | 2 | 09/1978 | 52208238999 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Porte-ecrou | M6 | 4 | 09/1978 | 52101828543 | $1.15 | Shop at ECS Tuning | |||
| 07 | Vis six pans | M6X25 | 4 | 09/1978 | 52101820255 | $0.35 | arrêté | Shop at ECS Tuning | ||
| 08 | Vis six pans | M6X18 | 8 | 09/1978 | 52101817572 | $0.26 | arrêté | Shop at ECS Tuning | ||
| 09 | Vis six pans | M10X25-8.8 ZN | 4 | 09/1978 | 07119913834 | $0.71 | Shop at ECS Tuning | |||
| 10 | Poignee gauche | 1 | 09/1978 | 52101873447 | $2.88 | Shop at ECS Tuning | ||||
| 10 | Poignee droite | 1 | 09/1978 | 52101873448 | $2.88 | Shop at ECS Tuning | ||||
| 11 | Ressort a torsion gauche | 1 | 09/1978 | 52101873443 | arrêté | Shop at ECS Tuning | ||||
| 11 | Ressort a torsion droit | 1 | 09/1978 | 52101873444 | $1.05 | arrêté | Shop at ECS Tuning | |||
| 12 | Ressort a torsion gauche | 1 | 09/1978 | 52101873445 | $1.12 | arrêté | Shop at ECS Tuning | |||
| 12 | Ressort a torsion droit | 1 | 09/1978 | 52101873446 | $0.90 | arrêté | Shop at ECS Tuning | |||
| NE CONVENANT QU'AVEC GLISSIERE LONGUE | ||||||||||
| 13 | Vis à tête noyée | M6X25 | 4 | 09/1978 | 07119928153 | arrêté | Shop at ECS Tuning | |||
| 14 | Capuchon | 2 | 09/1978 | 52101871453 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
