Appuie-tête arrière for BMW 3 Series E30 316i (1991)

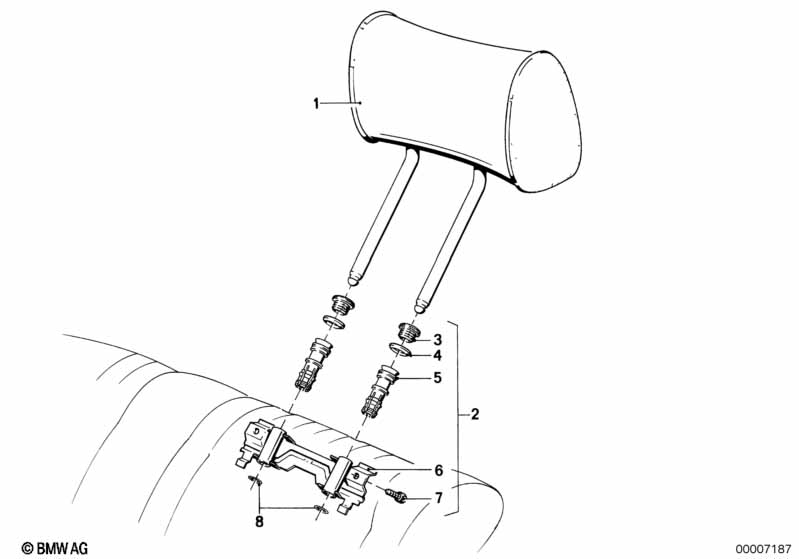

This Appuie-tête arrière technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 316i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 307-308-309 | |||||||||
| 01 | Appuie-tête tissu | 0145/0251 ANTHR | 2 | 52101913610 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tête tissu | 0146/0252 PACIF | 2 | 52101913611 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 01 | Appuie-tête tissu | 0147/0253 NUTRI | 2 | 52101913612 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tête tissu | 0148/0254 PERLB | 2 | 52101913613 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tête tissu | 0149/0255 PINIE | 2 | 52101913614 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tete simili-cuir | 0166 SCHWARZ | 2 | 52101913640 | $95.41 | arrêté | Shop at ECS Tuning | |||
| 01 | Appuie-tete simili-cuir | 0167 PACIFIC | 2 | 52101913641 | $122.76 | arrêté | Shop at ECS Tuning | |||
| 01 | Appuie-tete simili-cuir | 0155 NUTRIA | 2 | 52101913642 | $122.76 | arrêté | Shop at ECS Tuning | |||
| 01 | Appuie-tete simili-cuir | 0156 PERLBEIGE | 2 | 52101913643 | $122.76 | arrêté | Shop at ECS Tuning | |||
| 01 | Appuie-tete simili-cuir | 0168 PINIENGR. | 2 | 52101913644 | $122.76 | arrêté | Shop at ECS Tuning | |||
| Ausführung 307-308 | ||||||||||
| 01 | Appuie-tete cuir | 0159 SCHWARZ | 2 | 52101913654 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tete cuir | 0160 PACIFIC | 2 | 52101913655 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tete cuir | 0157 NUTRIA | 2 | 52101913656 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tete cuir | 0158 PERLBEIGE | 2 | 52101913657 | arrêté | Shop at ECS Tuning | ||||
| Ausführung 309 | ||||||||||
| 01 | Appuie-tete cuir | 0203/0402SCHWAR | 2 | 52101936278 | $188.60 | arrêté | Shop at ECS Tuning | |||
| 01 | Appuie-tete cuir | 0204/0285PACIFI | 2 | 52101936279 | $188.60 | arrêté | Shop at ECS Tuning | |||
| 01 | Appuie-tete cuir | 0205/0286NUTRIA | 2 | 52101936280 | arrêté | Shop at ECS Tuning | ||||
| 01 | Appuie-tete cuir | 0206/0287PERLBE | 2 | 52101936281 | $188.60 | arrêté | Shop at ECS Tuning | |||
| Ausführung 307-308-309-310 | ||||||||||
| 02 | Nécessaire de montage appuie-tête AR | 1 | 52209058393 | $41.57 | arrêté | Shop at ECS Tuning | ||||
| 03 | Recouvrement | SCHWARZ | 4 | 52108191245 | $1.66 | Shop at ECS Tuning | ||||
| 04 | Cache partie inférieure | 4 | 52101838969 | $0.43 | Shop at ECS Tuning | |||||
| 05 | Douille de guidage | 4 | 06/1985 | 52208132020 | $1.80 | Shop at ECS Tuning | ||||
| 06 | Support | 2 | 52201916156 | $23.28 | Shop at ECS Tuning | |||||
| 07 | Vis six pans avec rondelle | M6X16-U1-8.8 | 4 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Rondelle grower | 4 | 06/1985 | 52101928809 | $0.23 | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
