Accoudoir arrière for BMW 7 Series E32 750i (1987)

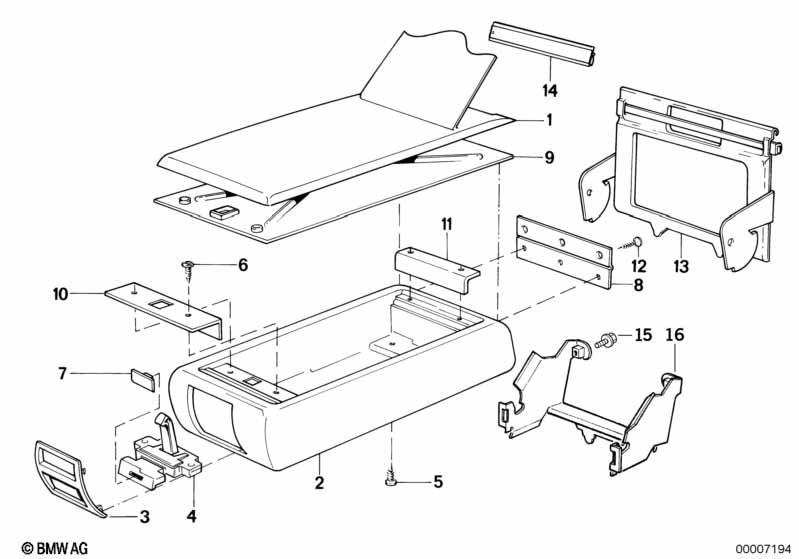

This Accoudoir arrière technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 | |||||||||
| Pour véhicules avec Version Japon |
L807A=Oui |
|||||||||
| 02 | Accoudoir inférieur tissu | 0422ANTHRAZIT91 | 1 | 52208143718 | arrêté | Shop at ECS Tuning | ||||
| 02 | Accoudoir inférieur tissu | 0423 SILBERGRAU | 1 | 52208143719 | arrêté | Shop at ECS Tuning | ||||
| 02 | Accoudoir inférieur tissu | 0424 ULTRAMARIN | 1 | 52208143720 | arrêté | Shop at ECS Tuning | ||||
| 02 | Accoudoir inférieur tissu | 0425 PERGAMENT | 1 | 52208143721 | arrêté | Shop at ECS Tuning | ||||
| 02 | Accoudoir inférieur tissu | 0426 BRASIL | 1 | 52208143722 | arrêté | Shop at ECS Tuning | ||||
| 03 | Segment de blocage | SCHWARZ | 1 | 12/1990 | 52201951206 | $12.18 | arrêté | Shop at ECS Tuning | ||
| 03 | Segment de blocage | SILBER | 1 | 12/1990 | 52201951207 | $10.04 | arrêté | Shop at ECS Tuning | ||
| 03 | Segment de blocage | INDIGO | 1 | 12/1990 | 52201951208 | $10.04 | arrêté | Shop at ECS Tuning | ||
| 03 | Segment de blocage | ANTILOPE | 1 | 12/1990 | 52201951209 | $10.04 | arrêté | Shop at ECS Tuning | ||
| 03 | Segment de blocage | HAVANNA | 1 | 12/1990 | 52201951366 | $10.04 | arrêté | Shop at ECS Tuning | ||
| 03 | Segment de blocage | NATUR | 1 | 12/1990 | 52201951367 | $10.04 | arrêté | Shop at ECS Tuning | ||
| 03 | Segment de blocage | SADDLE-TAN | 1 | 12/1990 | 52201951368 | arrêté | Shop at ECS Tuning | |||
| 03 | Segment de blocage | CARDINALROT | 1 | 12/1990 | 52201951369 | $10.04 | arrêté | Shop at ECS Tuning | ||
| 04 | Fermeture | 1 | 12/1990 | 52201856491 | $15.49 | arrêté | Shop at ECS Tuning | |||
| 05 | Vis a tole tête bombee | ST3,5X13 | X | 12/1990 | 07119906720 | $0.47 | Shop at ECS Tuning | |||
| 06 | Vis à tête bombée | M5X12-ZN | 1 | 12/1990 | 07119907627 | $0.43 | Shop at ECS Tuning | |||
| 07 | Bouton-poussoir | 1 | 12/1990 | 52201951201 | $1.27 | arrêté | Shop at ECS Tuning | |||
| 08 | Charniere | 1 | 12/1990 | 52201938330 | $11.72 | arrêté | Shop at ECS Tuning | |||
| 09 | Recouvrement | 1 | 12/1990 | 52201948027 | $34.60 | arrêté | Shop at ECS Tuning | |||
| 10 | Recouvrement | 1 | 12/1990 | 52201948028 | $34.60 | arrêté | Shop at ECS Tuning | |||
| 11 | Recouvrement | 1 | 12/1990 | 52201948029 | $34.60 | arrêté | Shop at ECS Tuning | |||
| 12 | Vis de tole a tete fraisee et bombee | ST3,5X13 | 6 | 12/1990 | 07119902578 | $0.36 | Shop at ECS Tuning | |||
| 13 | Support | 1 | 12/1990 | 52301951191 | $34.06 | Shop at ECS Tuning | ||||
| 14 | Attache de fixation | 1 | 12/1990 | 52201934862 | $6.02 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
