Revetement avant for BMW 8 Series E31 850Ci (1994)

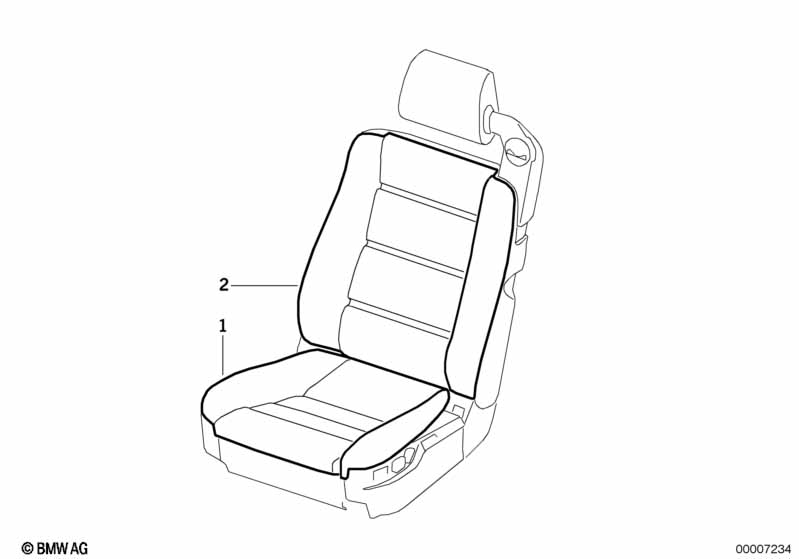

This Revetement avant technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 800 | |||||||||
| 01 | Garniture coussin tissu | 0346 ANTHRAZIT | 2 | 09/1996 | 52108152512 | $262.26 | arrêté | Shop at ECS Tuning | ||
| 01 | Garniture coussin tissu | 0347 SILBERGRAU | 2 | 09/1996 | 52108152513 | $303.55 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 01 | Garniture coussin tissu | 0348 ULTRAMARIN | 2 | 09/1996 | 52108152514 | $262.26 | arrêté | Shop at ECS Tuning | ||
| 01 | Garniture coussin tissu | 0349 PERGAMENT | 2 | 09/1996 | 52108152515 | $262.26 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 01 | Garniture coussin tissu | 0350 BRASIL | 2 | 09/1996 | 52108152516 | $262.26 | arrêté | Shop at ECS Tuning | ||
| NE CONVENANT QU'AVEC COLOR-LINE | ||||||||||
| 01 | Revetement siege cuir | 0488 BARBADOSGR | 2 | 11/1991 | 52108160596 | $758.88 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0489 TOBAGOBLAU | 2 | 11/1991 | 52108160598 | $758.88 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0490 CALYPSOROT | 2 | 11/1991 | 52108160600 | $758.88 | arrêté | Shop at ECS Tuning | ||
| CUIR P.L.REMBOURREM.BUFFALO | ||||||||||
| 01 | Revetement siege cuir | 0180 ANTHRAZIT | 2 | 11/1991 | 52108160492 | $862.11 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0362 BRASIL | 2 | 11/1991 | 52108160706 | $761.67 | arrêté | Shop at ECS Tuning | ||
| CUIR POUR LE REMBOURREMENT WALKNAPPA | ||||||||||
| 01 | Revetement siege cuir | 0226 SCHWARZ | 2 | 11/1991 | 52108160582 | $828.27 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0351/0352SILBER | 2 | 11/1991 | 52108160584 | $828.27 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0353/0354SIL-HE | 2 | 11/1991 | 52108160586 | $828.27 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0355 ULTRAMARIN | 2 | 11/1991 | 52108160588 | $758.88 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0356/0357PERGAM | 2 | 11/1991 | 52108160590 | $828.27 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0358/0359PER-HE | 2 | 11/1991 | 52108160592 | $758.88 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0361 KARMESINRT | 2 | 11/1991 | 52108160594 | $758.88 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0360 BRASIL | 2 | 11/1991 | 52108160718 | $761.67 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier tissu | 0346 ANTHRAZIT | 2 | 09/1996 | 52108152531 | $262.26 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 02 | Garniture dossier tissu | 0347 SILBERGRAU | 2 | 09/1996 | 52108152532 | $262.26 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier tissu | 0348 ULTRAMARIN | 2 | 09/1996 | 52108152533 | $262.26 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier tissu | 0349 PERGAMENT | 2 | 09/1996 | 52108152534 | $262.26 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier tissu | 0350 BRASIL | 2 | 09/1996 | 52108152535 | $262.26 | arrêté | Shop at ECS Tuning | ||
| NE CONVENANT QU'AVEC COLOR-LINE | ||||||||||
| 02 | Garniture dossier, cuir | 0488 BARBADOSGR | 2 | 11/1991 | 52108160616 | $750.51 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0489 TOBAGOBLAU | 2 | 11/1991 | 52108160617 | $750.51 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0490 CALYPSOROT | 2 | 11/1991 | 52108160618 | $750.51 | arrêté | Shop at ECS Tuning | ||
| CUIR P.L.REMBOURREM.BUFFALO | ||||||||||
| 02 | Garniture dossier, cuir | 0180 ANTHRAZIT | 2 | 11/1991 | 52108160494 | $750.51 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0362 BRASIL | 2 | 11/1991 | 52108160708 | $761.67 | arrêté | Shop at ECS Tuning | ||
| CUIR POUR LE REMBOURREMENT WALKNAPPA | ||||||||||
| 02 | Garniture dossier, cuir | 0226,0525 SCHW. | 2 | 11/1991 | 52108160604 | $1004.68 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0351/0352SILBER | 2 | 11/1991 | 52108160606 | $1004.68 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0353/0354SIL-HE | 2 | 11/1991 | 52108160608 | $1004.68 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0355 ULTRAMARIN | 2 | 11/1991 | 52108160610 | $750.51 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0356/0357PERGAM | 2 | 11/1991 | 52108160612 | $1004.68 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0358/0359PER-HE | 2 | 11/1991 | 52108160614 | $750.51 | arrêté, +vieille matière | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0361 KARMESINRT | 2 | 11/1991 | 52108160615 | $750.51 | arrêté | Shop at ECS Tuning | ||
| 02 | Garniture dossier, cuir | 0360 BRASIL | 2 | 11/1991 | 52108160721 | $761.67 | arrêté | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
