Revetement siege arriere for BMW 7 Series E32 750iL (1987)

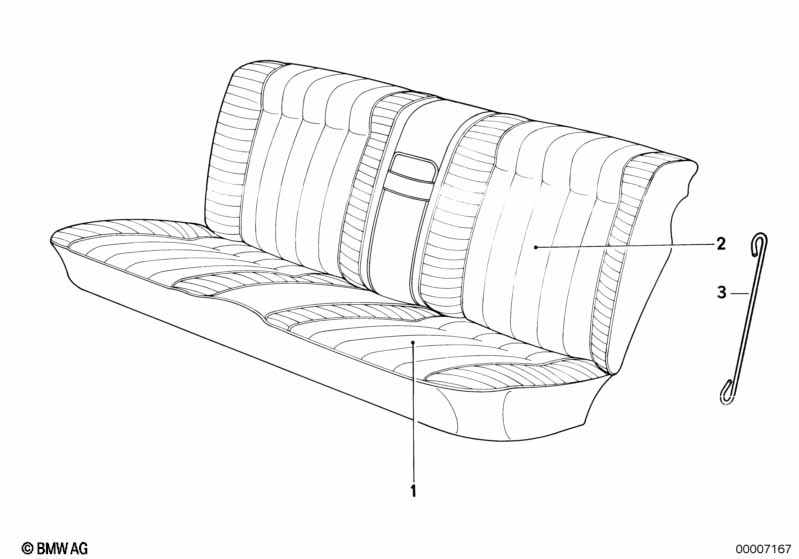

This Revetement siege arriere technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Ausführung 750 Ausführung 751 Ausführung 752 |
|||||||||
| SERIE INDIVIDUELLE 93/94 AVEC BANDE DE CAOUTCHOUC ROUGE FONCE |
||||||||||
| 01 | Revetement siege cuir | SCHWARZ | 1 | 52202261393 | arrêté | Shop at ECS Tuning | ||||
| 01 | Revetement siege cuir | MEXICOGRUEN | 1 | 52202262928 | arrêté | Shop at ECS Tuning | ||||
| SERIE INDIVIDUELLE 93/94 AVEC BANDE DE CAOUTCHOUC NOIR |
||||||||||
| 01 | Revetement siege cuir | SILBERGRAU | 1 | 52202261391 | arrêté | Shop at ECS Tuning | ||||
| 01 | Revetement siege cuir | CHAMPAGNER | 1 | 52202262927 | arrêté | Shop at ECS Tuning | ||||
| REVETEMENT TROIS-SIEGES ARRIERE CUIR POUR LE REMBOURREMENT WALKNAPPA |
||||||||||
| 01 | Revetement siege cuir | 0226/0232 SCHW. | 1 | 09/1990 | 52208113370 | $1199.70 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0227/0233 SILB. | 1 | 09/1990 | 52208113371 | $1199.70 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0228/0234 INDIG | 1 | 09/1990 | 52208113372 | $1099.26 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0229/0235 HAVAN | 1 | 09/1990 | 52208113373 | $984.87 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0231/0237 NATUR | 1 | 09/1990 | 52208113374 | $1099.26 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0238 SADDLE-TAN | 1 | 09/1990 | 52208113375 | $1099.26 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0323 KARMES.ROT | 1 | 09/1990 | 52208113376 | $984.87 | arrêté | Shop at ECS Tuning | ||
| 01 | Revetement siege cuir | 0239 CARDIN.ROT | 1 | 09/1990 | 52208114574 | $1099.26 | arrêté | Shop at ECS Tuning | ||
Note
- arrêté = la pièce n'est plus produite.
