Appuie-tête siège arrière for BMW 4 Series F32 440iX

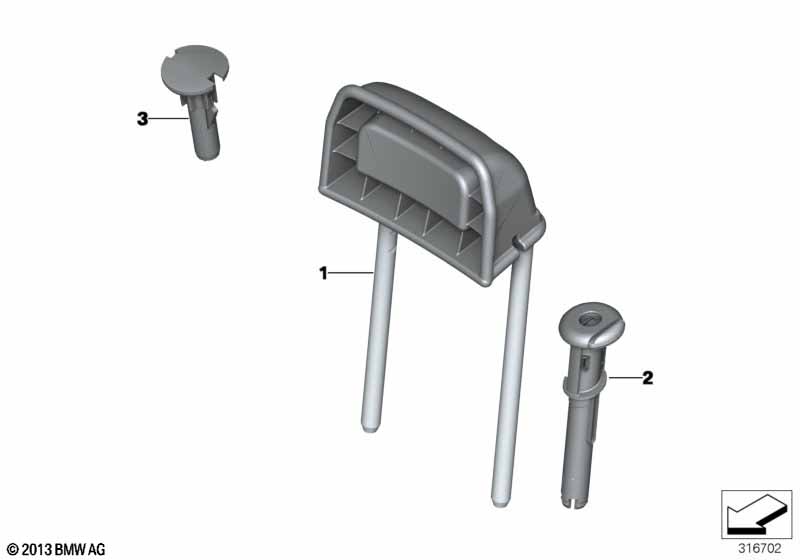

This Appuie-tête siège arrière technical drawing provides a detailed breakdown of the assembly for the 4 Series F32 440iX. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Pour véhicules avec Banquette arriere rabattable |
S465A=Oui |
||||||||
| 01 | Appuie-tête | 2 | 52207316918 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Veneto-beige ou Couture exclusive veneto beige Avec touche |
DF=Oui LY=Oui |
|||||||||
| 02 | Fourreau d'appuie-tête arrière | VENETOBEIGE | 2 | 52207309160 | Shop at ECS Tuning | |||||
| Pour véhicules avec Veneto-beige ou Couture exclusive veneto beige Sans touche |
DF=Oui LY=Oui |
|||||||||
| 02 | Fourreau d'appuie-tête arrière | VENETOBEIGE | 2 | 52207309161 | Shop at ECS Tuning | |||||
| Pour véhicules avec oyster/oyster ou oyster/liséré oyster foncé ou oyster/liséré oyster foncé ou oyster/schwarz Avec touche |
DH=Oui L9=Oui OM=Oui OP=Oui |
|||||||||
| 02 | Fourreau d'appuie-tête arrière | OYSTER | 2 | 52207288914 | Shop at ECS Tuning | |||||
| Pour véhicules avec oyster/oyster ou oyster/liséré oyster foncé ou oyster/liséré oyster foncé ou oyster/schwarz Sans touche |
DH=Oui L9=Oui OM=Oui OP=Oui |
|||||||||
| 02 | Fourreau d'appuie-tête arrière | OYSTER | 2 | 52207288916 | Shop at ECS Tuning | |||||
| Pour véhicules avec anthracite ou anthrazit / Akzent grau ou anthrazit / Akzent rot ou schwarz / Akzent rot ou everest-grau/Akzent schwarz ou korall-rot/Akzent schwarz ou schwarz / Akzent oyster dunkel ou sattel-braun Exklusivnaht ou Coutures exclusives noires ou noir 2 ou noir Avec touche |
AT=Oui L1=Oui L2=Oui L3=Oui L4=Oui L5=Oui L8=Oui LX=Oui LZ=Oui SM=Oui SW=Oui |
|||||||||
| 02 | Fourreau d'appuie-tête arrière | SCHWARZ | 2 | 52207288913 | Shop at ECS Tuning | |||||
| Pour véhicules avec anthracite ou anthrazit / Akzent grau ou anthrazit / Akzent rot ou schwarz / Akzent rot ou everest-grau/Akzent schwarz ou korall-rot/Akzent schwarz ou schwarz / Akzent oyster dunkel ou sattel-braun Exklusivnaht ou Coutures exclusives noires ou noir 2 ou noir Sans touche |
AT=Oui L1=Oui L2=Oui L3=Oui L4=Oui L5=Oui L8=Oui LX=Oui LZ=Oui SM=Oui SW=Oui |
|||||||||
| 02 | Fourreau d'appuie-tête arrière | SCHWARZ | 2 | 52207288915 | Shop at ECS Tuning | |||||
| 03 | Faux bouchon | 2 | 52207274640 | Shop at ECS Tuning | ||||||
