Siège arrière cadre de siège pass.charg. for BMW 5 Series G31 Touring LCI 518d (2019)

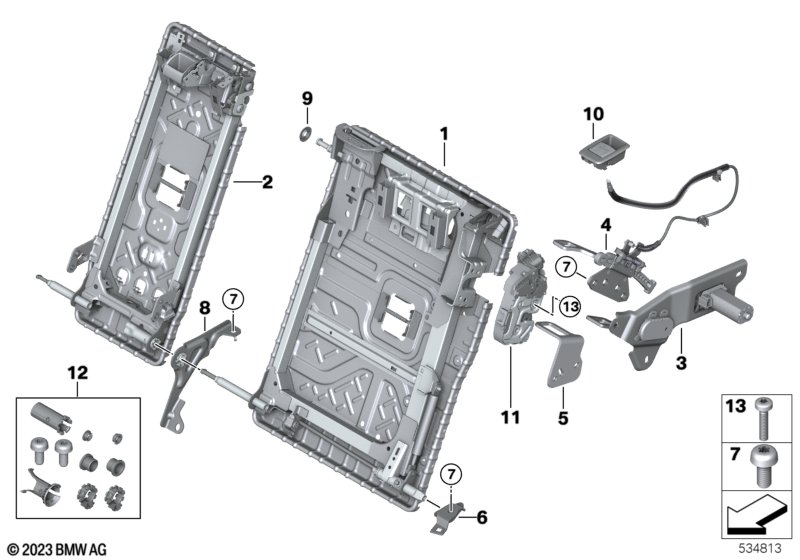

This Siège arrière cadre de siège pass.charg. technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring LCI 518d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cadre dossier gauche | 1 | 52207399211 | Shop at ECS Tuning | ||||||
| 01 | Cadre dossier droite | 1 | 52207399212 | Shop at ECS Tuning | ||||||
| 02 | Cadre de dossier médian | 20% | 1 | 52207399221 | Shop at ECS Tuning | |||||
| Pour véhicules avec Pack compartiment à bagages |
S418A=Oui |
|||||||||
| 04 | Unité de réglage cargo arrière gauche | 1 | 52207385919 | Shop at ECS Tuning | ||||||
| 04 | Unité de réglage cargo arrière droite | 1 | 52207385920 | Shop at ECS Tuning | ||||||
| Pour véhicules avec Pack compartiment à bagages |
S418A=Non |
|||||||||
| 05 | Etrier de verrouillage côté droit | 1 | 52207385916 | Shop at ECS Tuning | ||||||
| 05 | Etrier de verrouillage côté gauche | 1 | 52207385917 | Shop at ECS Tuning | ||||||
| 06 | Roulement extérieur gauche | 1 | 52207422659 | Shop at ECS Tuning | ||||||
| 06 | Roulement extérieur droit | 1 | 52207422660 | Shop at ECS Tuning | ||||||
| 07 | Vis à tête | M10X22 | 4 | 07149148299 | Shop at ECS Tuning | |||||
| 08 | Support dossier droite exterieure | 1 | 52207422661 | Shop at ECS Tuning | ||||||
| 08 | Support dossier droite interieure | 1 | 52207422662 | Shop at ECS Tuning | ||||||
| Pour véhicules avec canberra-beige ou canberrabeige Exklusivnaht/Keder ou Sensatec perforé/ beige canberra |
CY=Oui DO=Oui KHFY=Oui |
|||||||||
| 09 | Cache | CANBERRABEIGE | 1 | 52207436807 | NoS | Shop at ECS Tuning | ||||
| Pour véhicules avec elfenbein-weiss ou Couture exclusive/bourrelet blanc ivoire ou Contraste cout.exclusive/bourr.blanc iv ou Cuir Dakota/elfenbein-weiss/cout.exclu. ou Cuir exclusif Nappa/ivoire blanc |
EW=Oui FF=Oui FI=Oui LCFI=Oui LZFI=Oui |
|||||||||
| 09 | Cache | ELFENBEINWEISS | 1 | 52207436808 | NoS | Shop at ECS Tuning | ||||
| Pour véhicules avec anthracite ou Contraste cout.exclusive noire/bourrel. ou mocha/couture exclusive/bourrelet contr. ou noir / bleu ou cognac ou Contraste cout.exclusive cognac /bourr. ou noir ou nuit bleu/couture exclus./bourrel.contr. ou Tissu Junction / anthracite ou Tissu Rhombicle Alcantara anthracite ou Similicuir Sensatec perforé/cognac ou Similicuir Sensatec perforé/noir ou Cuir Dakota/noir/couture exclusive ou Cuir Dakota/noir/contraste bleu ou Cuir Dakota/cognac/couture exclusive ou Cuir "Dakota"/schwarz ou Cuir exclusif Nappa/noir/cout.exclusive ou Cuir exclusif Nappa/mocha/cout.exclusive |
AT=Oui FK=Oui NI=Oui NL=Oui RI=Oui RO=Oui SW=Oui TJ=Oui BYAT=Oui HRAT=Oui KHRI=Oui KHSW=Oui LCFK=Oui LCNL=Oui LCRO=Oui LCSW=Oui LZFK=Oui LZNI=Oui |
|||||||||
| 09 | Cache boulon de serrure | SCHWARZ | 1 | 52207436809 | Shop at ECS Tuning | |||||
| Pour véhicules avec Pack compartiment à bagages et Tissu Junction / anthracite ou Plectoid tissu/cuir / anthracite ou Tissu Rhombicle Alcantara anthracite ou Cuir "Dakota/elfenbein-weiss" ou Cuir Dakota/elfenbein-weiss/cout.exclu. ou Cuir Dakota/elfenbein-weiss/cout.exclu. ou Cuir Dakota/noir/couture exclusive ou Cuir Dakota/noir/contraste bleu ou Cuir Dakota/cognac ou Cuir Dakota/cognac/couture exclusive ou Cuir "Dakota"/schwarz ou Cuir Dakota/nuit bleu/couture exclusive ou Cuir exclusif Nappa/ivoire blanc ou Cuir exclusif Nappa/ivoire blanc ou Cuir exclusif Nappa/noir/cout.exclusive ou Cuir exclusif Nappa/mocha/cout.exclusive |
S418A=Oui BYAT=Oui CNAT=Oui HRAT=Oui LCEW=Oui LCFF=Oui LCFI=Oui LCFK=Oui LCNL=Oui LCRI=Oui LCRO=Oui LCSW=Oui LCTJ=Oui LZFF=Oui LZFI=Oui LZFK=Oui LZNI=Oui |
|||||||||
| 10 | Unité d'actionnement | SCHWARZ | 1 | 52207455072 | Shop at ECS Tuning | |||||
| 11 | Serrure gauche | 1 | 52207408045 | Shop at ECS Tuning | ||||||
| 11 | Serrure droit | 1 | 52207408046 | Shop at ECS Tuning | ||||||
| 12 | Jeu de reparation coussinet | 1 | 52206994316 | NoS | Shop at ECS Tuning | |||||
| 13 | Vis à tête bombée | M8X40 | 4 | 07149149258 | $3.05 | Shop at ECS Tuning | ||||
Note
- NoS = No Stock (Pièce pas en stock dans magasin central)
