Toit ouvrant commande for BMW 1502-2002tii 2002

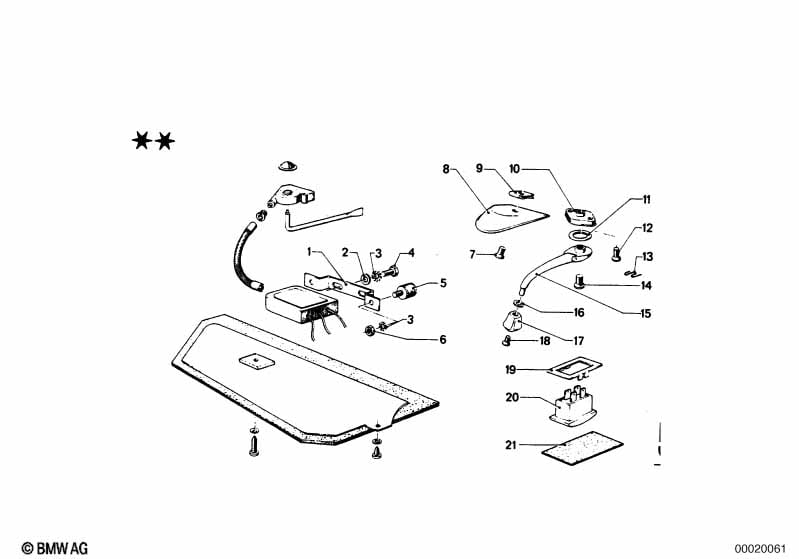

This Toit ouvrant commande technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Equerre | 1 | 02/1962 | 08/1973 | 54139634175 | arrêté | Shop at ECS Tuning | |||
| 01 | Equerre | 1 | 08/1973 | 07/1977 | 54121832603 | arrêté | Shop at ECS Tuning | |||
| 02 | Plaque d'appui | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Jeu rondelle grower 20 | B6 | 4 | 07509064025 | arrêté | Shop at ECS Tuning | ||||
| 04 | Vis six pans | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Silentbloc | 2 | 02/1962 | 08/1973 | 54139634176 | arrêté | Shop at ECS Tuning | |||
| 05 | Silentbloc | 1 | 08/1973 | 07/1977 | 54121832606 | arrêté | Shop at ECS Tuning | |||
| 06 | Ecrou à six pans | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Vis a tole a tete fraisee | ST4,8X13 | 1 | 07119902236 | $0.16 | arrêté | Shop at ECS Tuning | |||
| 08 | Cuvette poignée | 1 | 54129634115 | $17.16 | Shop at ECS Tuning | |||||
| 09 | Ecrou tôlé | ST4,8-5 | 1 | 07129901652 | $0.25 | Shop at ECS Tuning | ||||
| 10 | Rosace | 1 | 54129734133 | $91.89 | arrêté | Shop at ECS Tuning | ||||
| 11 | Rondelle de bloquage | 1 | 54129634177 | $1.14 | Shop at ECS Tuning | |||||
| 12 | Vis à tête noyée | M4X16 | 2 | 07119928103 | $1.40 | arrêté | Shop at ECS Tuning | |||
| 13 | Ressort | 1 | 54129634112 | $1.20 | Shop at ECS Tuning | |||||
| Ressort pour la manivelle 9631110. L'atelier BMW Group Classic serait en mesure de monter celle-ci en cas de problèmes de montage. Vous trouverez l'interlocuteur sur le site BMW Classic : www. bmwgroup-classic.com |
||||||||||
| 14 | Vis a tete fraisee et bombee | M4X10 | 1 | 07119901692 | $0.17 | arrêté | Shop at ECS Tuning | |||
| 15 | Manivelle | 1 | 54129634110 | $31.96 | arrêté | Shop at ECS Tuning | ||||
| 16 | Rondelle elastique | B6 | 1 | 07119932072 | $0.09 | arrêté | Shop at ECS Tuning | |||
| 17 | Bouton | 1 | 54129634114 | $2.43 | arrêté | Shop at ECS Tuning | ||||
| 18 | Vis à tête bombée | M4X8 | 1 | 07119906407 | $1.64 | Shop at ECS Tuning | ||||
| 19 | Cadre d'interrupteur | 1 | 08/1973 | 07/1977 | 51411822904 | $2.34 | arrêté | Shop at ECS Tuning | ||
| 20 | Interrupteur | 1 | 02/1962 | 08/1973 | 61311355415 | $45.17 | Shop at ECS Tuning | |||
| 21 | Appui | 1 | 08/1973 | 07/1977 | 54121832610 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
