Baur Top Cabriolet for BMW 3 Series E30 323i (1986)

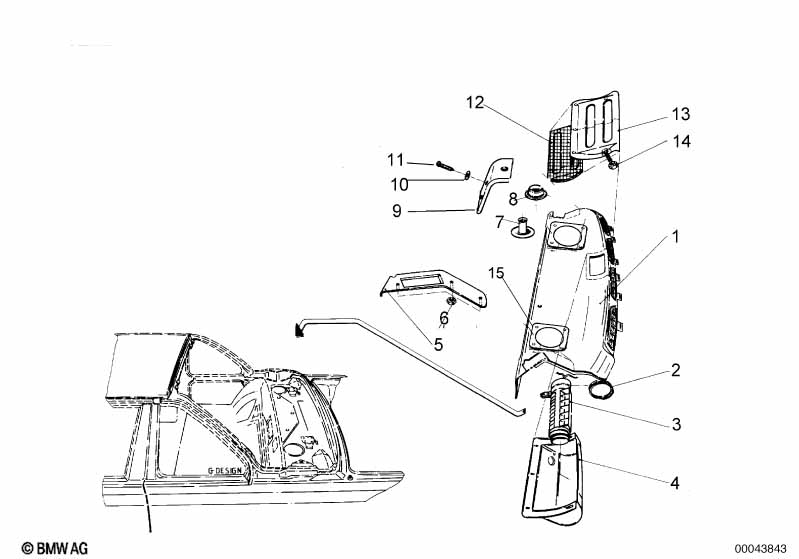

This Baur Top Cabriolet technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Ventilateur | BAUR | 1 | 64110006625 | Shop at ECS Tuning | |||||
| 04 | Recouvrement | 1 | 51460006405 | arrêté | Shop at ECS Tuning | |||||
| 05 | Cache gauche | 1 | 51460006406 | arrêté | Shop at ECS Tuning | |||||
| -> Baur Karosserie 45213 | ||||||||||
| 05 | Cache droit | 1 | 51460006407 | arrêté | Shop at ECS Tuning | |||||
| -> Baur Karosserie 45213 | ||||||||||
| 45214 -> Baur Karosserie | ||||||||||
| 09 | Support | 2 | 51460006410 | arrêté | Shop at ECS Tuning | |||||
| 12 | Grille | 1 | 51460006409 | arrêté | Shop at ECS Tuning | |||||
| 13 | Cache | 1 | 51460006408 | arrêté | Shop at ECS Tuning | |||||
| 15 | Cache de haut-parleur | 2 | 65130006445 | arrêté | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
