Pièces de dispositif de lave-glace for BMW 7 Series E38 730iL

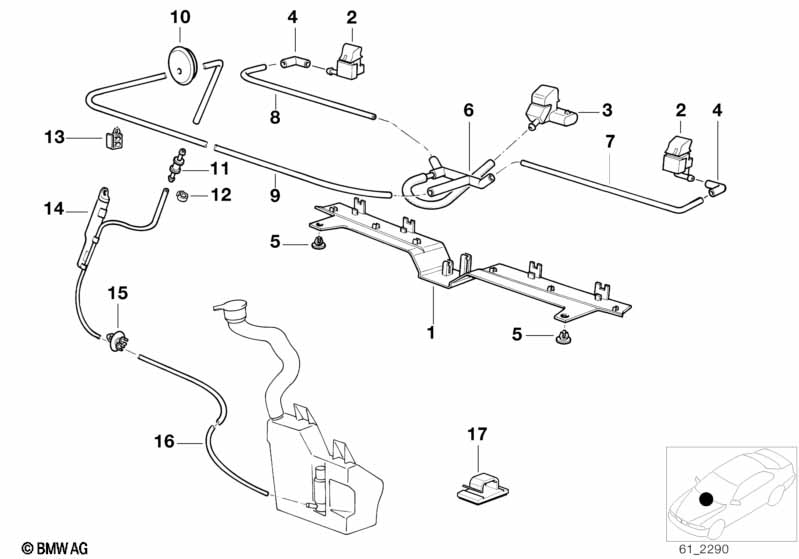

This Pièces de dispositif de lave-glace technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 730iL. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rail de fixation p tuyau dans capot av. | 1 | 04/1995 | 61668360180 | $12.38 | Shop at ECS Tuning | ||||
| 02 | Gicleur chauffant gauche | 1 | 04/1995 | 61668360125 | $38.82 | Shop at ECS Tuning | ||||
| 02 | Gicleur chauffant droit | 1 | 04/1995 | 61668360126 | $38.82 | Shop at ECS Tuning | ||||
| 03 | Gicleur chauffant central | 1 | 04/1995 | 61668352904 | $37.35 | arrêté | Shop at ECS Tuning | |||
| 04 | Raccord | 2 | 04/1995 | 61668360179 | $2.33 | Shop at ECS Tuning | ||||
| 05 | Rivet | 2 | 04/1995 | 51481938725 | $0.37 | Shop at ECS Tuning | ||||
| 06 | Pièce de distribution | 1 | 04/1995 | 61668360178 | $33.18 | Shop at ECS Tuning | ||||
| 07 | Conduite en tuyaux flexibles gauche | 1 | 04/1995 | 61668360695 | $15.75 | Shop at ECS Tuning | ||||
| 08 | Conduite en tuyaux flexibles droite | 1 | 04/1995 | 61668360696 | $15.75 | Shop at ECS Tuning | ||||
| 09 | Conduite flexible centrale | 1 | 04/1995 | 61668360185 | $21.18 | Shop at ECS Tuning | ||||
| 10 | Douille de dispositif lave glace | 1 | 04/1995 | 61668360415 | $2.33 | Shop at ECS Tuning | ||||
| 11 | Raccord | 1 | 04/1995 | 61661382908 | $0.48 | Shop at ECS Tuning | ||||
| 12 | Collier de serrage | 8-9.5MM | X | 04/1995 | 16131379229 | $0.72 | Shop at ECS Tuning | |||
| 13 | Support de conduite | X | 04/1995 | 61131361243 | $1.77 | Shop at ECS Tuning | ||||
| POUR MONTAGE VOIR MANUEL DE REPARATION | ||||||||||
| 13 | Support de conduite | D=6MM | X | 04/1995 | 61131379087 | $0.72 | Shop at ECS Tuning | |||
| POUR MONTAGE VOIR MANUEL DE REPARATION | ||||||||||
| 14 | Support de tuyau | 1 | 04/1995 | 61668360139 | $2.33 | Shop at ECS Tuning | ||||
| 15 | Support de conduite | 1 | 04/1995 | 61668360485 | $2.05 | Shop at ECS Tuning | ||||
| 16 | Conduite en tuyaux flexibles | D= 4,6MM | X | 04/1995 | 61661357388 | $5.05 | Shop at ECS Tuning | |||
| SOLUTION DE REPARATION P ATTACHER CONDUITE TUYAUX FLEXIBL. AU CAPOT-MOTEUR |
||||||||||
| 17 | Support de conduite | X | 61131361243 | $1.77 | Shop at ECS Tuning | |||||
Note
- arrêté = la pièce n'est plus produite.
