Recouvrement de cable for BMW 5 Series E39 528i (1995)

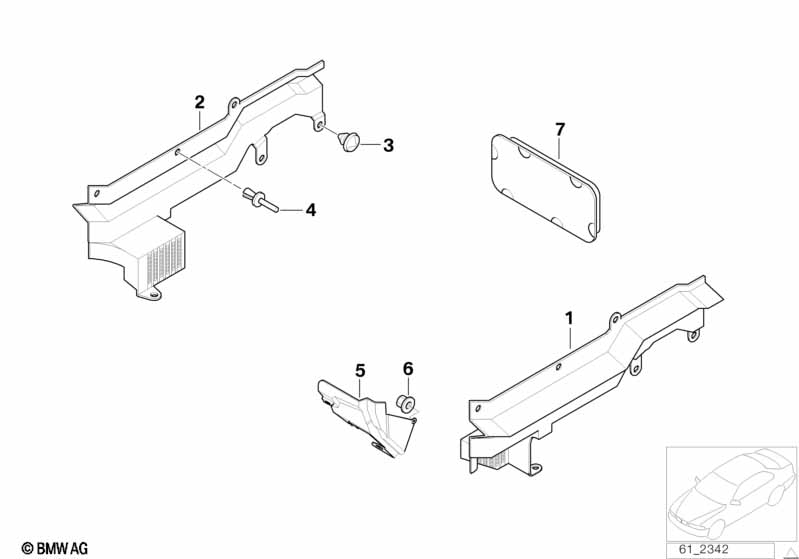

This Recouvrement de cable technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cache de câble de membrure longit. AVG | 1 | 61138366683 | $6.17 | Shop at ECS Tuning | |||||
| 02 | Cache de câble de membrure longit. AVD | 1 | 61138366684 | $6.17 | Shop at ECS Tuning | |||||
| 03 | Bouchon noir | D=6,35MM | X | 51488114499 | $0.56 | Shop at ECS Tuning | ||||
| 04 | Rivet | 2 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 05 | Recouvrem.cable de tablier frontal av.d. | 1 | 61138366690 | $6.03 | Shop at ECS Tuning | |||||
| 06 | Ecrou plast. axe à filetage à pas gros | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 07 | Recouvrement | 1 | 61138375282 | Shop at ECS Tuning |
