Interrupteurs divers for BMW 7 Series E38 750iLS (1995)

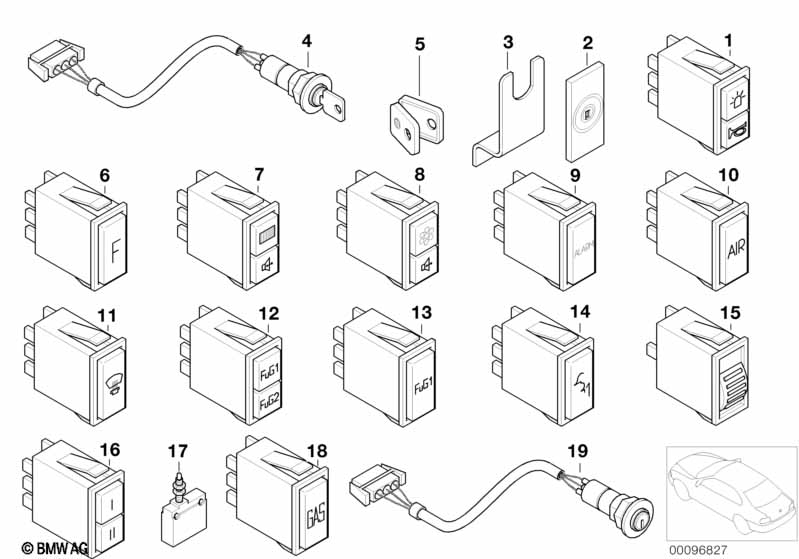

This Interrupteurs divers technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 750iLS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interrupteur avertisseuer a sons mult. | 1 | 61318360356 | $148.43 | Shop at ECS Tuning | |||||
| 02 | Fermeture dissimule | 5 | 64111368498 | $7.03 | Shop at ECS Tuning | |||||
| 03 | Support p interrupteur de serrure | 1 | 61318371138 | arrêté | Shop at ECS Tuning | |||||
| 04 | Interrupteur de serrure avec clé | 1 | 61318360362 | $411.80 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 05 | Recouvrement de clé | 2 | 65721390307 | $3.08 | arrêté | Shop at ECS Tuning | ||||
| 06 | Interrupteur d'installation extincteur | 1 | 09/1997 | 61318360364 | $399.25 | arrêté | Shop at ECS Tuning | |||
| 07 | Interrupteur interphone | 1 | 61318360370 | $133.33 | arrêté | Shop at ECS Tuning | ||||
| 08 | Interrupteur du bouton d'interphone | 1 | 61318360371 | $389.48 | Shop at ECS Tuning | |||||
| 09 | Interrupteur d'alarme | 1 | 61318360377 | $133.33 | arrêté | Shop at ECS Tuning | ||||
| 10 | Interrupteur de circulation d'air | 1 | 09/1997 | 61318360365 | $389.48 | arrêté | Shop at ECS Tuning | |||
| 11 | Bouton du chauffage de pare-brise | 1 | 61318360378 | $148.43 | arrêté | Shop at ECS Tuning | ||||
| 12 | Interrupteur tele communication | 1 | 61318360382 | $389.48 | arrêté | Shop at ECS Tuning | ||||
| 13 | Interrupteur tele communication | 1 | 61318360380 | $135.04 | arrêté | Shop at ECS Tuning | ||||
| 14 | Interrupteur camouflage de langue | 1 | 61318360394 | $148.43 | arrêté, +vieille matière | Shop at ECS Tuning | ||||
| 15 | Regulateur du volume sonore | 2 | 64211382898 | arrêté, +vieille matière | Shop at ECS Tuning | |||||
| 16 | Interrupteur frequence radio | 1 | 61318360393 | $148.43 | arrêté | Shop at ECS Tuning | ||||
| 17 | Microcontacteur | 1 | 61318360383 | $58.31 | arrêté, +vieille matière | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
- +vieille matière = consigne de la vieille matière (possibilité de retourner la vieille pièce)
