Faisceau pour retro exterieur electrique for BMW 5 Series E12 520

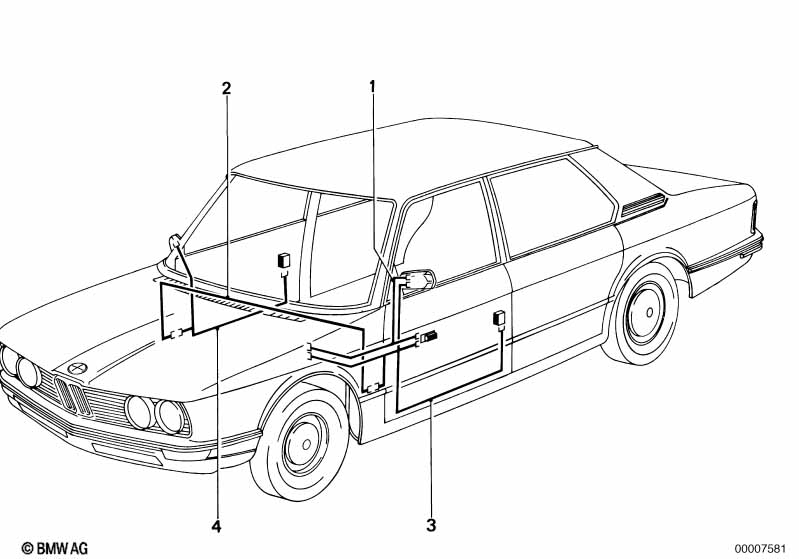

This Faisceau pour retro exterieur electrique technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware.

Faisceau pour retro exterieur electrique
Descriptions Supplément Qté  A partir de   Jusqu'à  Référence pièce Prix Note
Pour véhicules avec
Rétroviseur extérieur électrique

=Oui
01 Jeu de cables cote conducteur 1 08/1977 61121364840 $99.88 arrêté Shop at ECS Tuning
02 Faisceau raccordement retro additionnel 1 08/1977 61121364105 $29.30 arrêté Shop at ECS Tuning
Pour véhicules avec
2 rétroviseurs extérieurs
et
Verrouillage centralise

=Oui

=Oui
03 Jeu de cables cote conducteur 1 08/1977 61121364840 $99.88 arrêté Shop at ECS Tuning
04 Jeu de cables cote passager 1 08/1977 61121364841 arrêté Shop at ECS Tuning
Note
  • arrêté = la pièce n'est plus produite.
