Faisceau pour retro exterieur electrique for BMW 6 Series E24 633CSi (1979)

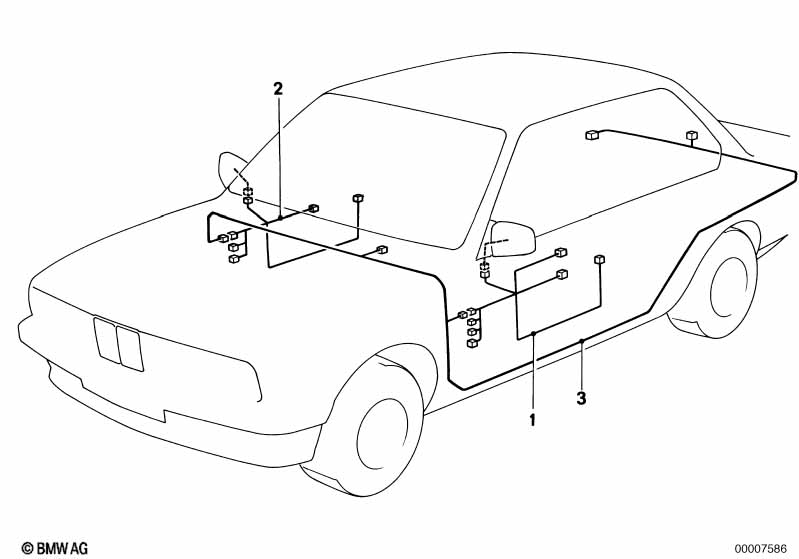

This Faisceau pour retro exterieur electrique technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Jeu de cables cote conducteur | 1 | 09/1980 | 61121362085 | $123.88 | arrêté | Shop at ECS Tuning | |||
| 02 | Jeu de cables cote passager | 1 | 09/1980 | 61121364256 | arrêté | Shop at ECS Tuning | ||||
| 03 | Faisceau pour alimentation | 1 | 09/1980 | 61121364181 | arrêté | Shop at ECS Tuning |
Note
- arrêté = la pièce n'est plus produite.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Faisceau pour retro exterieur electrique?
- This technical diagram illustrates the Faisceau pour retro exterieur electrique within the Electricité du véhicule group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Jeu de cables cote conducteur (Part #61121362085).
- Which models use the hardware listed in this Faisceau pour retro exterieur electrique?
- The hardware and components featured in the Faisceau pour retro exterieur electrique are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Jeu de cables cote conducteur (61121362085) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Faisceau pour retro exterieur electrique assembly?
- Each item in the Faisceau pour retro exterieur electrique corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Jeu de cables cote conducteur by locating its position on the schematic, which then links to the official BMW part number 61121362085 for the Electricité du véhicule section.
