Faisceaux for BMW 7 Series E23 733i (1984)

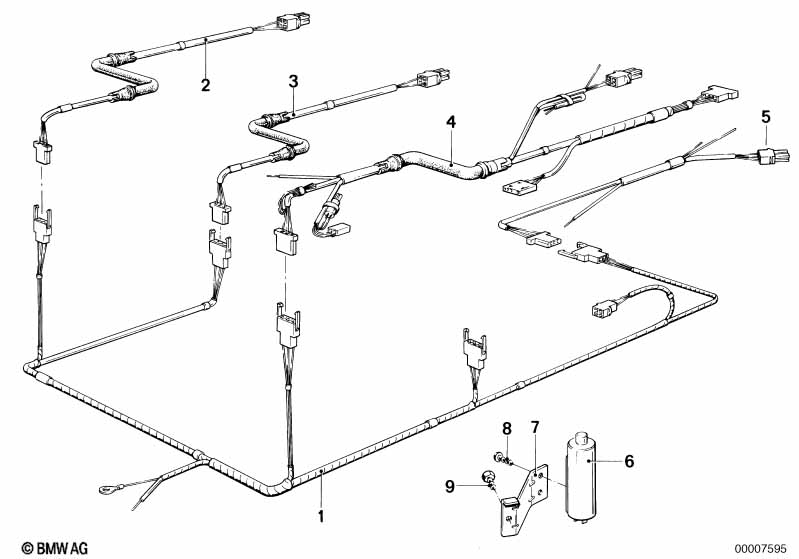

This Faisceaux technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Verrouillage centralise |
=Oui |
|||||||||
| 02 | Jeu de cables cote passager | 1 | 04/1983 | 61123907939 | arrêté | Shop at ECS Tuning | ||||
| 03 | Faisceau arriere | 1 | 04/1983 | 61121372862 | $55.52 | arrêté | Shop at ECS Tuning | |||
| 03 | Faisceau arriere | 2 | 04/1983 | 61123907941 | Shop at ECS Tuning | |||||
| 04 | Jeu de cables cote conducteur | 1 | 04/1983 | 61121372865 | $114.95 | arrêté | Shop at ECS Tuning | |||
| 04 | Jeu de cables cote conducteur | 1 | 04/1983 | 61123907940 | arrêté | Shop at ECS Tuning | ||||
| 05 | Cable lampe de coffre | 1 | 04/1983 | 61121372153 | $30.97 | arrêté | Shop at ECS Tuning | |||
| 06 | Contacteur | 1 | 01/1981 | 01/1986 | 61311380302 | $214.70 | Shop at ECS Tuning | |||
| 07 | Support | 1 | 01/1981 | 61311369111 | $2.90 | arrêté | Shop at ECS Tuning | |||
| 08 | Vis à tôle | 3,5X9,5 | 2 | 07119904455 | $2.45 | Shop at ECS Tuning | ||||
| 09 | Vis à tôle à six pans | B5,5X13 | 2 | 07119916872 | arrêté | Shop at ECS Tuning | ||||
Note
- arrêté = la pièce n'est plus produite.
