Faisceau pour systeme ABS for BMW 6 Series E24 M6 (1988)

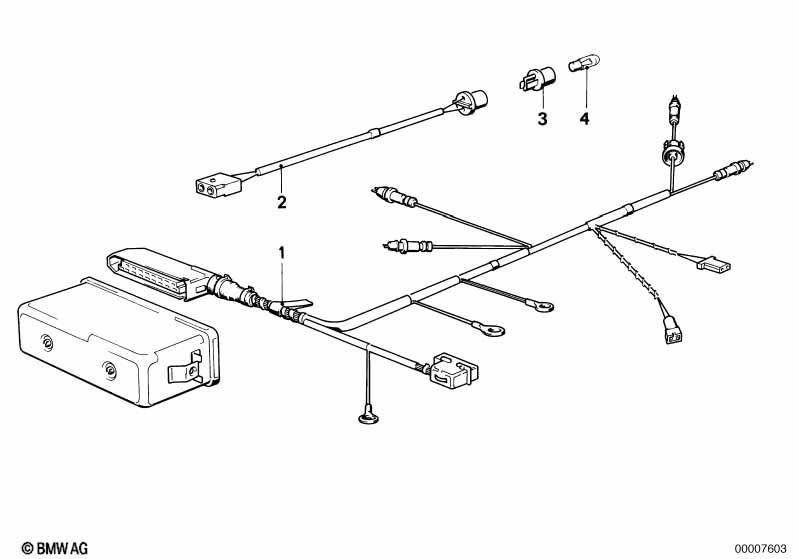

This Faisceau pour systeme ABS technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 M6. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | NE CONVENANT QU'AVEC ABS | |||||||||
| 03 | Douille d'ampoule | 1 | 09/1982 | 64111366170 | $2.37 | Shop at ECS Tuning | ||||
| 04 | Ampoule | 12V 1,2W | 1 | 09/1982 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 04 | Ampoule | 12V 1,2W | 1 | 09/1987 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 M6 Faisceau pour systeme ABS?
- This technical diagram illustrates the Faisceau pour systeme ABS within the Electricité du véhicule group for the 6 Series E24 M6 produced during 1988. It provides a detailed exploded view of the components, identifying key parts such as the Douille d'ampoule (Part #64111366170).
- Which models use the hardware listed in this Faisceau pour systeme ABS?
- The hardware and components featured in the Faisceau pour systeme ABS are specific to the 6 Series E24 M6 produced during 1988. These technical specifications ensure that parts like the Douille d'ampoule (64111366170) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Faisceau pour systeme ABS assembly?
- Each item in the Faisceau pour systeme ABS corresponds to the numbered list below the illustration. For the 6 Series E24 M6, you can identify the Douille d'ampoule by locating its position on the schematic, which then links to the official BMW part number 64111366170 for the Electricité du véhicule section.
