Faisceau for BMW 3 Series E30 324td (1991)

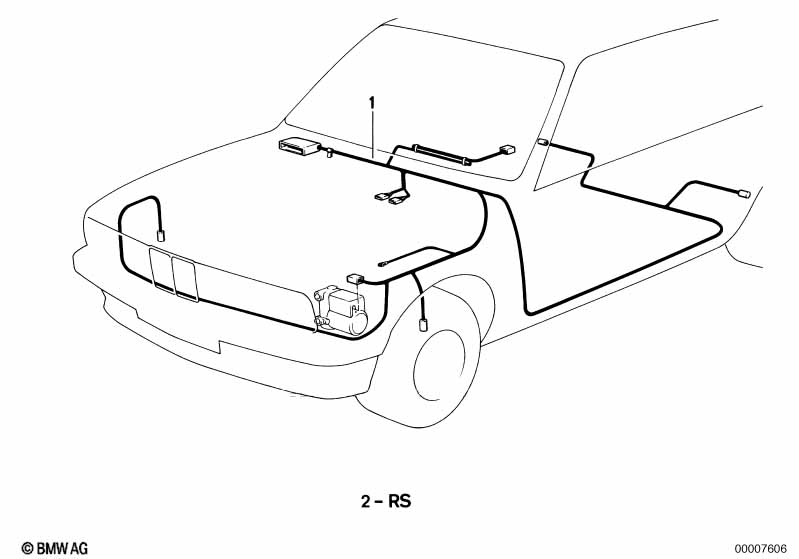

This Faisceau technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 324td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Câble de réparation ABS | 1 | 61131390540 | $47.49 | Shop at ECS Tuning | |||||
| uniquement en combinaison avec | ||||||||||
| -- | Fiche de contact | B=2,85/L=19 | 2 | 61131357705 | $0.63 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 324td Faisceau?
- This technical diagram illustrates the Faisceau within the Electricité du véhicule group for the 3 Series E30 324td produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Câble de réparation ABS (Part #61131390540).
- Which models use the hardware listed in this Faisceau?
- The hardware and components featured in the Faisceau are specific to the 3 Series E30 324td produced during 1991. These technical specifications ensure that parts like the Câble de réparation ABS (61131390540) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Faisceau assembly?
- Each item in the Faisceau corresponds to the numbered list below the illustration. For the 3 Series E30 324td, you can identify the Câble de réparation ABS by locating its position on the schematic, which then links to the official BMW part number 61131390540 for the Electricité du véhicule section.
