Faisceaux for BMW 6 Series E24 628CSi

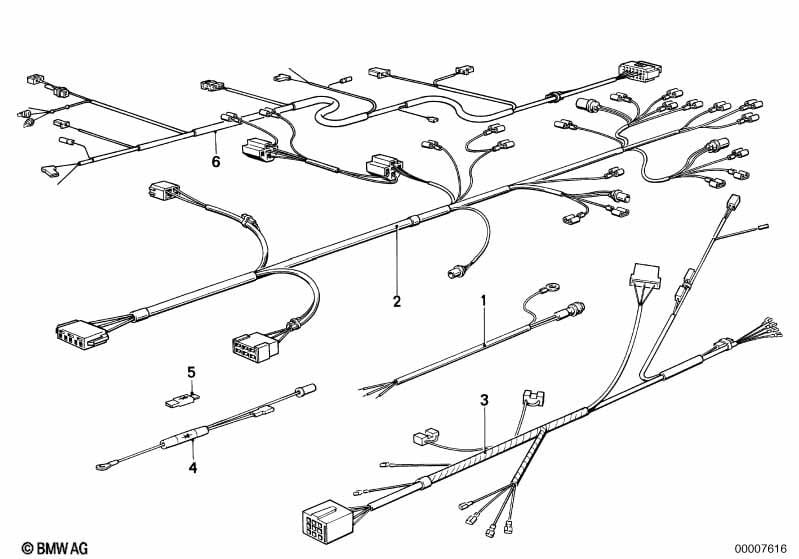

This Faisceaux technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Faisceau temoin d'usure garniture frein | 1 | 61121367674 | $57.44 | arrêté | Shop at ECS Tuning | ||||
| 02 | Jeu de cables de commande de chauffage | 1 | 08/1979 | 05/1982 | 61111367156 | arrêté | Shop at ECS Tuning | |||
| 02 | Jeu de cables de commande de chauffage | 1 | 05/1982 | 61121371742 | $141.73 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Climatiseur |
=Oui |
|||||||||
| 02 | Jeu de cables de commande de chauffage | 1 | 08/1979 | 05/1982 | 61111367157 | $155.11 | arrêté | Shop at ECS Tuning | ||
| 02 | Jeu de cables de commande de chauffage | 1 | 05/1982 | 09/1984 | 61111371594 | $168.52 | arrêté | Shop at ECS Tuning | ||
| 03 | Faisceau pour climatiseur | 1 | 09/1981 | 61121368174 | arrêté | Shop at ECS Tuning | ||||
| 03 | Faisceau pour climatiseur | 1 | 09/1981 | 05/1982 | 61121362794 | $158.23 | arrêté | Shop at ECS Tuning | ||
| 03 | Faisceau pour climatiseur | 1 | 05/1982 | 09/1984 | 61121372442 | $172.98 | arrêté | Shop at ECS Tuning | ||
| 03 | Faisceau pour climatiseur | 1 | 09/1984 | 09/1985 | 61121380288 | $169.63 | arrêté | Shop at ECS Tuning | ||
| 03 | Faisceau pour climatiseur | 1 | 09/1985 | 09/1986 | 61121380288 | $169.63 | arrêté | Shop at ECS Tuning | ||
| 03 | Faisceau pour climatiseur | 1 | 09/1986 | 06/1987 | 61121381340 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Climatiseur |
=Oui |
|||||||||
| 03 | Jeu de cables de commande de chauffage | 1 | 09/1984 | 09/1986 | 61121380287 | arrêté | Shop at ECS Tuning | |||
| 03 | Jeu de cables de commande de chauffage | 1 | 09/1986 | 61121381437 | $207.58 | arrêté | Shop at ECS Tuning | |||
| 04 | Faisceau pour embrayage magnetique | 1 | 05/1982 | 61124176611 | $28.74 | arrêté | Shop at ECS Tuning | |||
| 05 | Diode | 1 | 61311358265 | Shop at ECS Tuning | ||||||
| 06 | Jeu de cables sound system | 1 | 09/1985 | 61111377129 | $270.07 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
