Divers faisceaux additionnels for BMW 6 Series E24 628CSi

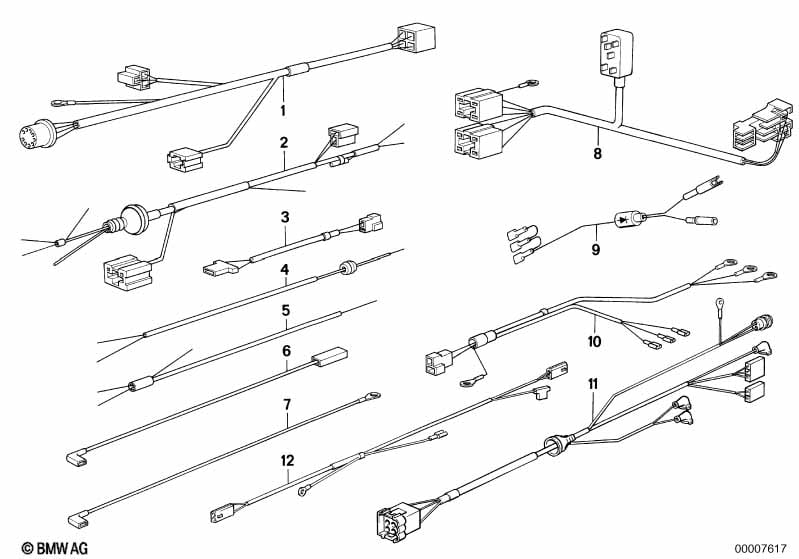

This Divers faisceaux additionnels technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Faisceau de boite de vitesses automat. | 3HP22 | 1 | 05/1982 | 61121361474 | $118.34 | arrêté | Shop at ECS Tuning | ||
| 01 | Faisceau de boite de vitesses automat. | 4HP22 | 1 | 05/1982 | 61121375544 | arrêté | Shop at ECS Tuning | |||
| 03 | Jeu de cables ventilateur additionnel | 1 | 09/1981 | 61121365777 | arrêté | Shop at ECS Tuning | ||||
| 04 | Jeu de cables lampe compartement moteur | 1 | 05/1983 | 61121371595 | $15.74 | arrêté | Shop at ECS Tuning | |||
| 04 | Faisceau pour lampe comp moteur/gicleur | 1 | 05/1983 | 06/1987 | 61131373874 | $41.81 | arrêté | Shop at ECS Tuning | ||
| 04 | Faisceau pour lampe comp moteur/gicleur | 1 | 06/1987 | 61131385686 | $43.52 | arrêté | Shop at ECS Tuning | |||
| 05 | Cable lampe de coffre | 1 | 05/1982 | 61121355618 | $7.57 | arrêté | Shop at ECS Tuning | |||
| 05 | Cable lampe de coffre | 1 | 05/1982 | 65751371736 | arrêté | Shop at ECS Tuning | ||||
| 06 | Cable electrique degivrage lunette ar + | 1 | 61121355637 | $2.53 | arrêté | Shop at ECS Tuning | ||||
| 07 | Cable - de lunette arriere chauffante | 1 | 61121355636 | $2.53 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Grande-Bretagne |
L812A=Oui |
|||||||||
| 08 | Faisceau de veilleuse conduite de jour | 1 | 05/1982 | 61121385332 | $113.83 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Norvege version |
=Oui |
|||||||||
| 08 | Faisceau de veilleuse conduite de jour | 1 | 01/1985 | 11/1985 | 61121377754 | arrêté | Shop at ECS Tuning | |||
| 08 | Faisceau de veilleuse conduite de jour | 1 | 11/1985 | 09/1986 | 61121377284 | arrêté | Shop at ECS Tuning | |||
| 08 | Faisceau de veilleuse conduite de jour | 1 | 09/1986 | 61121381439 | $113.83 | arrêté | Shop at ECS Tuning | |||
| 10 | Faisceau pour plafonnier central | 1 | 61121364087 | $21.99 | arrêté | Shop at ECS Tuning | ||||
| 11 | Faisceau pour pre-pompe d'alimentation | 1 | 61121371869 | $135.04 | arrêté | Shop at ECS Tuning | ||||
| 12 | Faisceau pour miroir de courtoisie | 1 | 05/1982 | 09/1985 | 61121366945 | arrêté | Shop at ECS Tuning | |||
| 12 | Faisceau pour miroir de courtoisie | 1 | 09/1985 | 61121380289 | $20.31 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
