Faisceaux for BMW 6 Series E24 628CSi

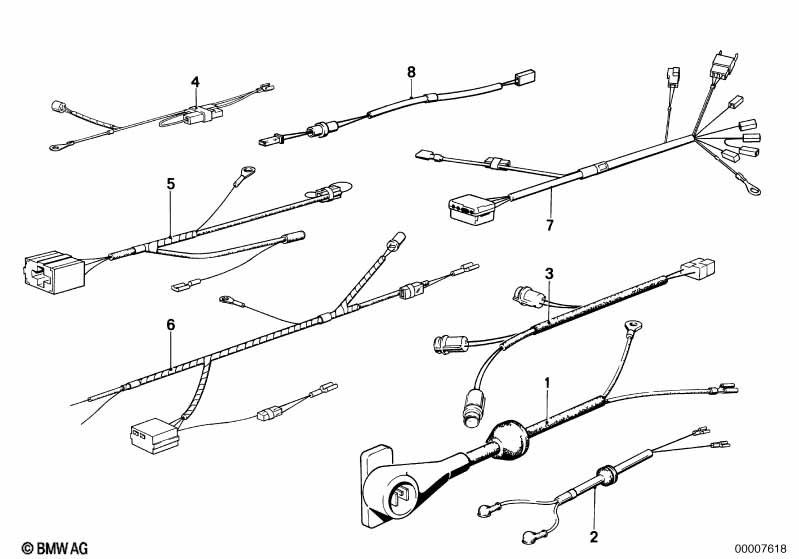

This Faisceaux technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 628CSi. It includes part names, part numbers and all associated mounting hardware.
| N° | Descriptions | Supplément | Qté | A partir de | Jusqu'à | Référence pièce | Prix | Note | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Pour véhicules avec Lève-glace électrique |
=Oui |
|||||||||
| 02 | Câble prolongateur | 1 | 09/1980 | 05/1982 | 61121367872 | $24.91 | Shop at ECS Tuning | |||
| 03 | Faisceau pour eclairage des instruments | 1 | 05/1982 | 61121362600 | $21.00 | arrêté | Shop at ECS Tuning | |||
| 04 | Faisc. de cabl. project. anti-brouillard | 1 | 09/1980 | 61121365287 | $28.74 | arrêté | Shop at ECS Tuning | |||
| Pour véhicules avec Version France |
L813A=Oui |
|||||||||
| 05 | Jeu de cabl.feux arriere antibrouillard | 1 | 05/1982 | 61121361955 | arrêté | Shop at ECS Tuning | ||||
| Pour véhicules avec Version Suisse |
L804A=Oui |
|||||||||
| 05 | Jeu de cabl.feux arriere antibrouillard | 1 | 01/1980 | 09/1980 | 61121369455 | arrêté | Shop at ECS Tuning | |||
| 05 | Jeu de cabl.feux arriere antibrouillard | 1 | 09/1980 | 05/1982 | 61121369864 | arrêté | Shop at ECS Tuning | |||
| 05 | Jeu de cabl.feux arriere antibrouillard | 1 | 05/1982 | 61121373138 | $30.13 | arrêté | Shop at ECS Tuning | |||
| 07 | Faisceau pour t o relevable electrique | 1 | 01/1983 | 61121372096 | $51.06 | arrêté | Shop at ECS Tuning | |||
| 07 | Faisceau pour t o relevable electrique | 1 | 01/1983 | 09/1986 | 61121373306 | $68.08 | arrêté | Shop at ECS Tuning | ||
| 07 | Faisceau pour t o relevable electrique | 1 | 09/1986 | 61121381499 | $41.29 | arrêté | Shop at ECS Tuning | |||
| 08 | Faisceau pour chauffage auxiliaire | 1 | 09/1983 | 09/1984 | 61121374612 | $20.48 | arrêté | Shop at ECS Tuning | ||
| 08 | Faisceau pour chauffage auxiliaire | 1 | 09/1984 | 61121375324 | $35.71 | arrêté | Shop at ECS Tuning | |||
Note
- arrêté = la pièce n'est plus produite.
